Custom Cable Assembly Manufacturer
OEM cable assembly manufacturing for global brands, engineering teams, procurement teams and long-term supply programs.
Cablivo supports custom cable assembly projects from early requirement review to approved sample, stable production, testing, packaging and shipment coordination.
- Drawing, BOM, connector model and old sample review
- Cable length, AWG, pinout, material and overmold discussion
- Prototype sample development before bulk production

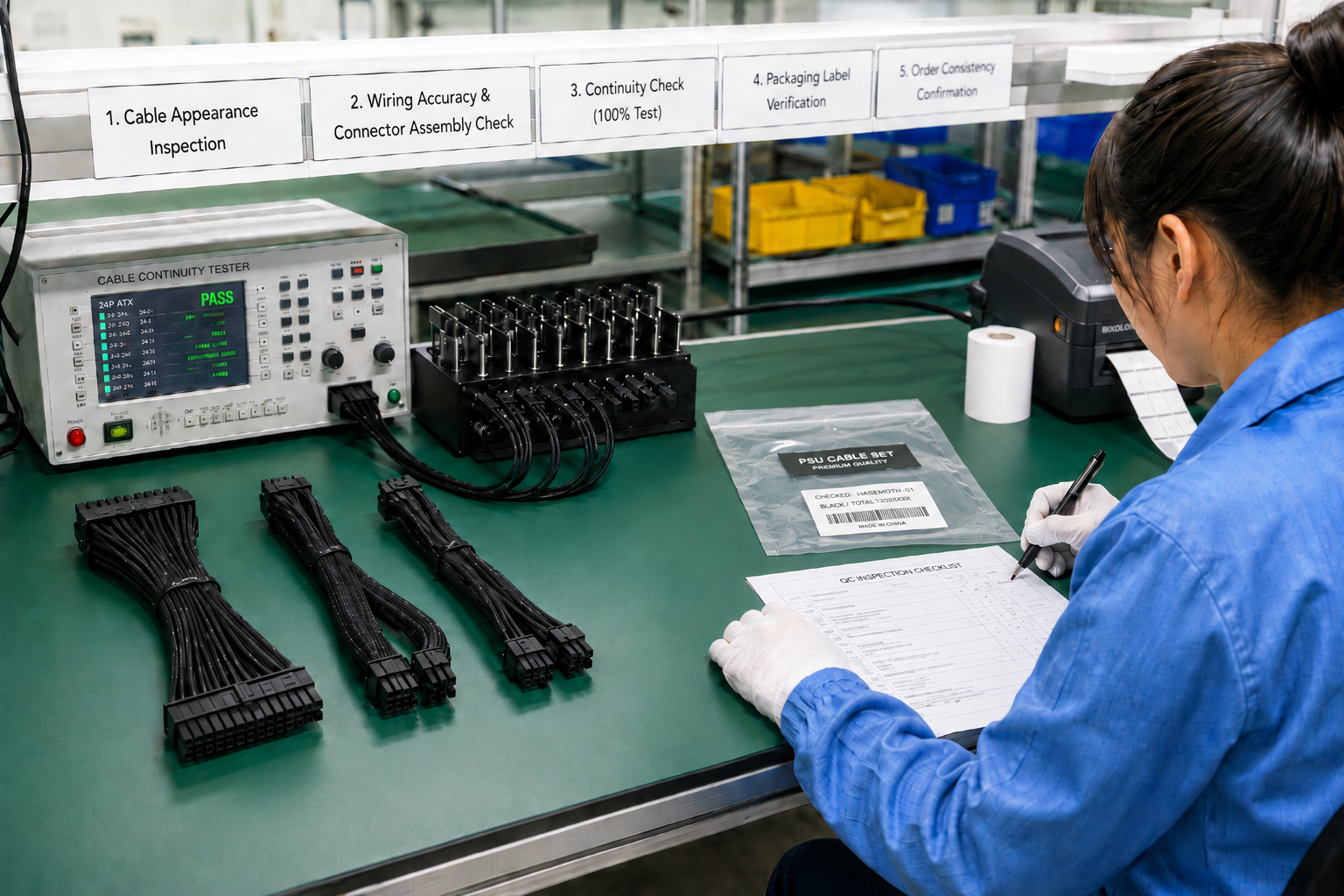

- Continuity, polarity, pinout and appearance checks
- Barcode, SKU label, carton mark and export packing support
- 18 Years Experience
- 20000+㎡ Factory Space
- 1500+ Person Team
- 3 Manufacturing Bases
- 80+ Injection Molding Machines
- MOQ From 500 pcs
A Manufacturer for Real Cable Assembly Projects
Teams searching for a custom cable assembly manufacturer often need more than a standard cable quote. Cablivo helps turn project files, samples and specifications into manufacturable assemblies.
Project Files
Many projects start with incomplete information. A team may have a drawing, BOM, connector photo, old sample or device interface image, yet still need support before sampling. Cablivo reviews cable length, connector model, pinout, wire gauge, material direction, application notes and target quantity before moving into prototype work. Early file review helps reduce connector mismatch, wrong wire sequence, unsuitable jacket material and unclear testing requirements.
Manufacturing Route
Cable assembly projects need a controlled route from review to sample and production. Cablivo supports requirement review, connector confirmation, material discussion, sample development, sample feedback, final BOM, production preparation and outgoing inspection. For assemblies involving crimping, soldering, shielding, heat shrink, overmolding or labeling, related details should be confirmed before quotation and sampling.
Supply Program
For brands, importers, distributors and long-term supply programs, a cable assembly is also part of inventory, packaging and repeat order control. Cablivo can discuss barcode labels, SKU labels, retail packing, export cartons, carton marks and shipment preparation. Final lead time depends on product structure, connector sourcing, material availability, tooling need, order quantity, testing scope and packaging plan.
Built for Brands, Engineers and Supply Programs
Cablivo works with project teams needing custom cable assemblies for devices, equipment, retail programs, industrial systems and long-term manufacturing plans
Global Brands
Brands often need cable assemblies with stable appearance, repeatable quality and clear packaging execution. Cablivo can support logo position discussion, cable color, connector color, molded shape, label position, retail box direction, barcode files and SKU control. For brand projects, approved sample and final packaging files should be locked before bulk production to reduce mismatch between launch samples and repeat orders.
Engineering Teams
Engineering teams usually care about drawings, BOM, connector fit, wire gauge, polarity, pinout and application performance. Cablivo reviews technical files and sample photos before prototype development. If full drawings are not ready, a team can start with connector photos, cable length, device interface images, application notes and target quantity, then confirm missing details before sampling.
Procurement Teams
Procurement teams need supplier reliability, quotation clarity, MOQ boundary, packaging control and production schedule discussion. Cablivo’s MOQ starts from 500 pcs for many custom cable projects, while final MOQ depends on connector type, cable structure, material, overmolding requirement, tooling need, packaging plan and order quantity. Clear project files help quotation move faster.
Industrial Manufacturers
Industrial equipment projects often need cable assemblies with stable connection, installation-friendly layout, wire labels, terminal accuracy and durable handling. Cablivo can review old samples, equipment interface photos, terminal models, harness layout, protective sleeve needs and testing requirements. For control systems, automation equipment and equipment connection projects, structure confirmation before sampling is especially important.
Importers Distributors
Importers and distributors usually handle multiple lengths, connectors, colors, packaging versions and carton requirements. Cablivo can discuss multi-SKU cable programs, barcode labels, SKU stickers, poly bag packing, retail boxes, carton marks, packing lists and export cartons. Clear SKU lists and quantity breakdowns help reduce wrong labels, mixed packing and warehouse handling risk.
Long-Term Programs
Long-term supply programs need stable files, approved samples, version control, material consistency, packaging repeatability and shipment coordination. Cablivo supports custom cable assembly projects from first review to sample approval and repeat production planning. Final drawings, BOM, connector models, labeling files and packaging files should remain controlled after sample approval.
Problems Cablivo Helps Reduce Before Production
Brief Description: Cable assembly failures often come from unclear details before sampling. Cablivo reviews key risk points before moving a project into prototype or bulk production.
Connector Mismatch
Problem: A connector looks similar but does not fit the device.
Risk:
Sample may fail during installation or testing.
Cablivo Support:
- Connector model, mating interface, pin count, housing structure, exit direction and datasheet can be reviewed before sampling.
- For old sample replacement, connector photos and device interface images help confirm direction before production preparation.
Wrong Pinout
Problem: Wire sequence or polarity is not clearly confirmed.
Risk:
Device connection, signal transmission or power supply may fail.
Cablivo Support:
- Pinout table, wiring diagram, old sample photos and testing notes can be reviewed before prototype work.
- Continuity, polarity and pinout checks can be discussed according to product type and project requirements.
Sample Deviation
Prototype sample does not match drawing, BOM or old sample expectation.
Risk:
Repeated revisions delay project progress.
Cablivo Support:
- Requirement review, connector confirmation, material discussion and sample feedback can be managed before revised sample production.
- Approved sample becomes a reference for final files and bulk order preparation.
Material Change
Problem: Jacket, conductor, connector or sleeve changes without review.
Risk:
Appearance, flexibility, assembly handling or testing result may be affected.
Cablivo Support:
- Material or connector changes should be reviewed and confirmed before production, especially when changes may affect function, appearance, packaging or delivery schedule.
Packing Error
Problem: Barcode, SKU, inner bag, carton mark or packing quantity is unclear.
Risk:
Warehouse sorting, retail preparation and repeat order control may be affected.
Cablivo Support：
- Packaging files, barcode labels, SKU lists, carton marks and packing quantity can be checked before production packing.
- Packaging confirmation helps reduce mixed SKU and wrong label risk.
Bulk Mismatch
Problem: Bulk production differs from approved sample.
Risk:
Rework, complaints or supply delay may occur.
Cablivo Support：
- Final drawing,
- final BOM
- approved sample
- material list
- connector model
- production file
- testing requirement and packaging file should be locked before bulk production.
Cable Assembly Types Cablivo Can Manufacture
Cablivo supports custom cable assembly projects across power, signal, network, RF, USB, industrial, medical device support and overmolded cable directions.

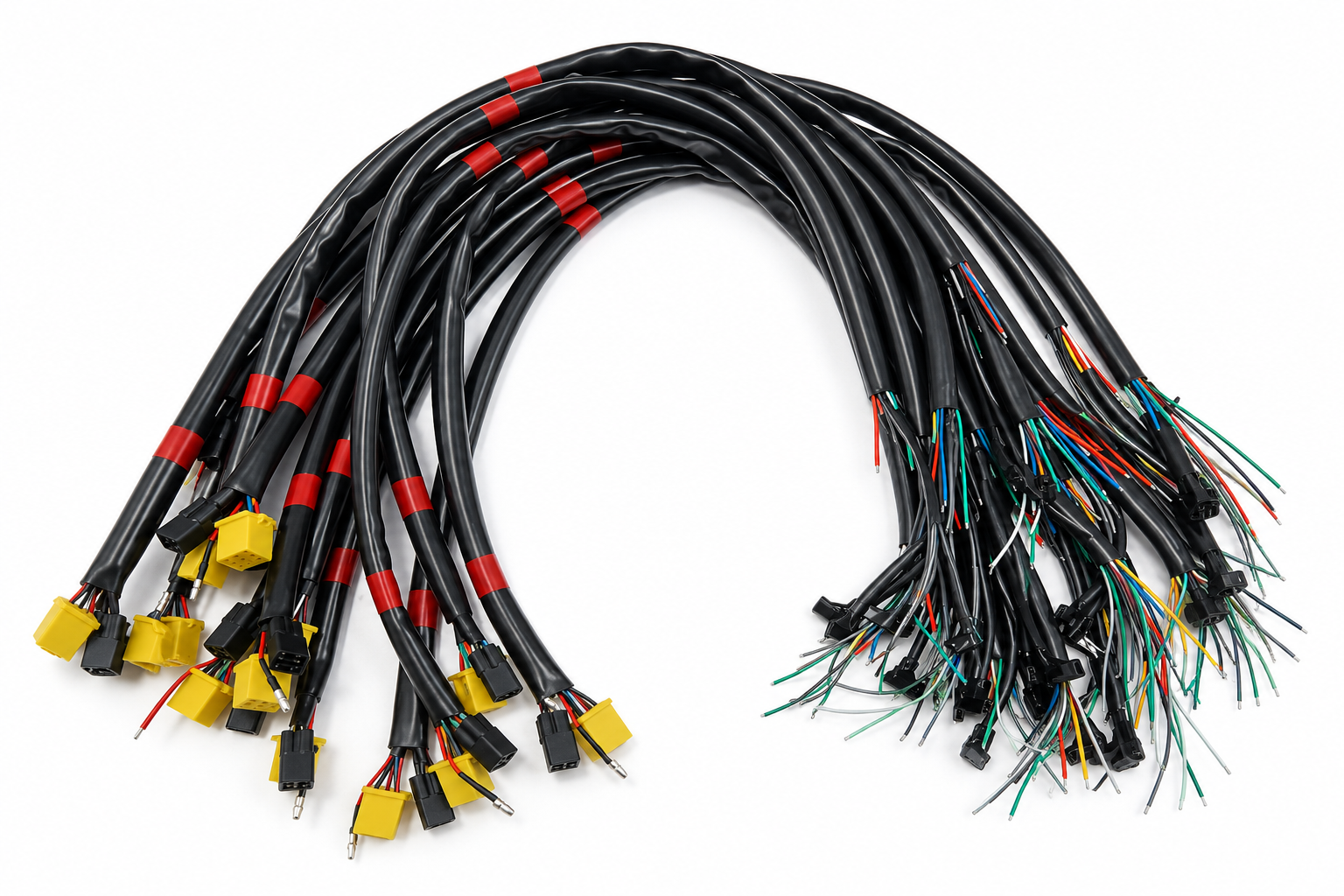

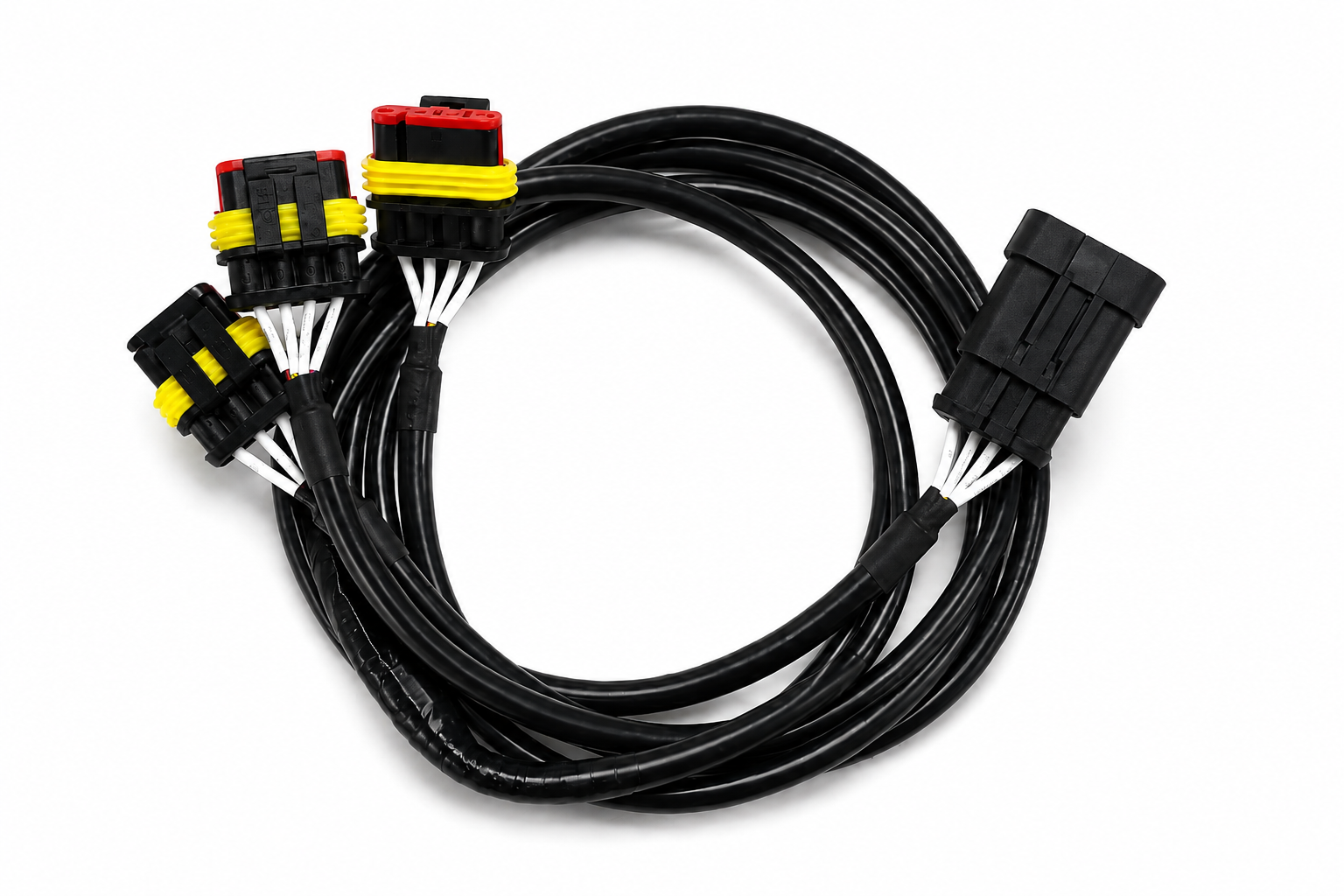

Wire Harnesses
Custom wire harnesses can include multiple branches, terminals, housings, labels, sleeves, ties and testing points. Cablivo reviews branch layout, wire gauge, terminal model, housing direction, label position and application before sampling. Typical use includes industrial equipment, control units, automation devices and equipment connection projects.

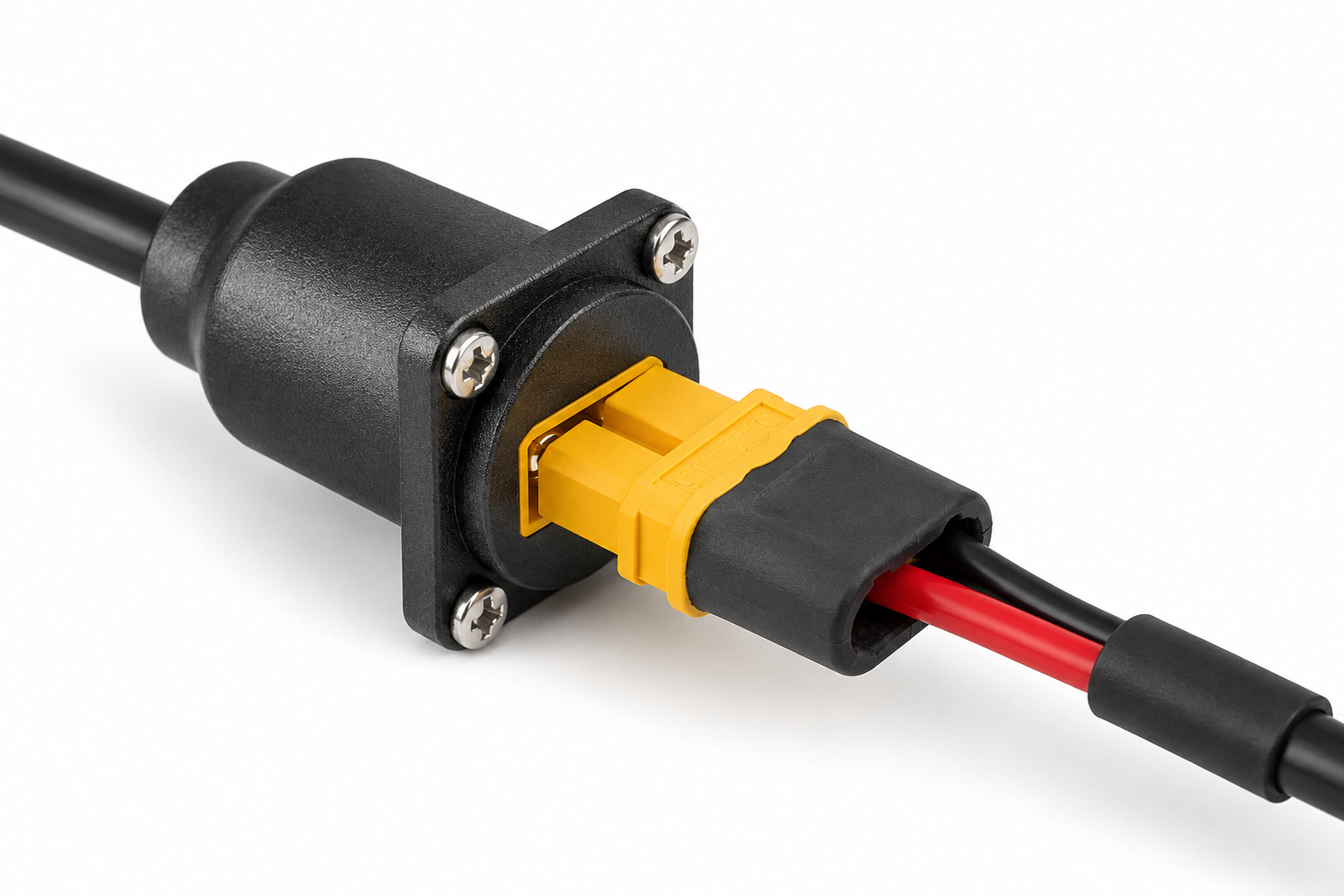

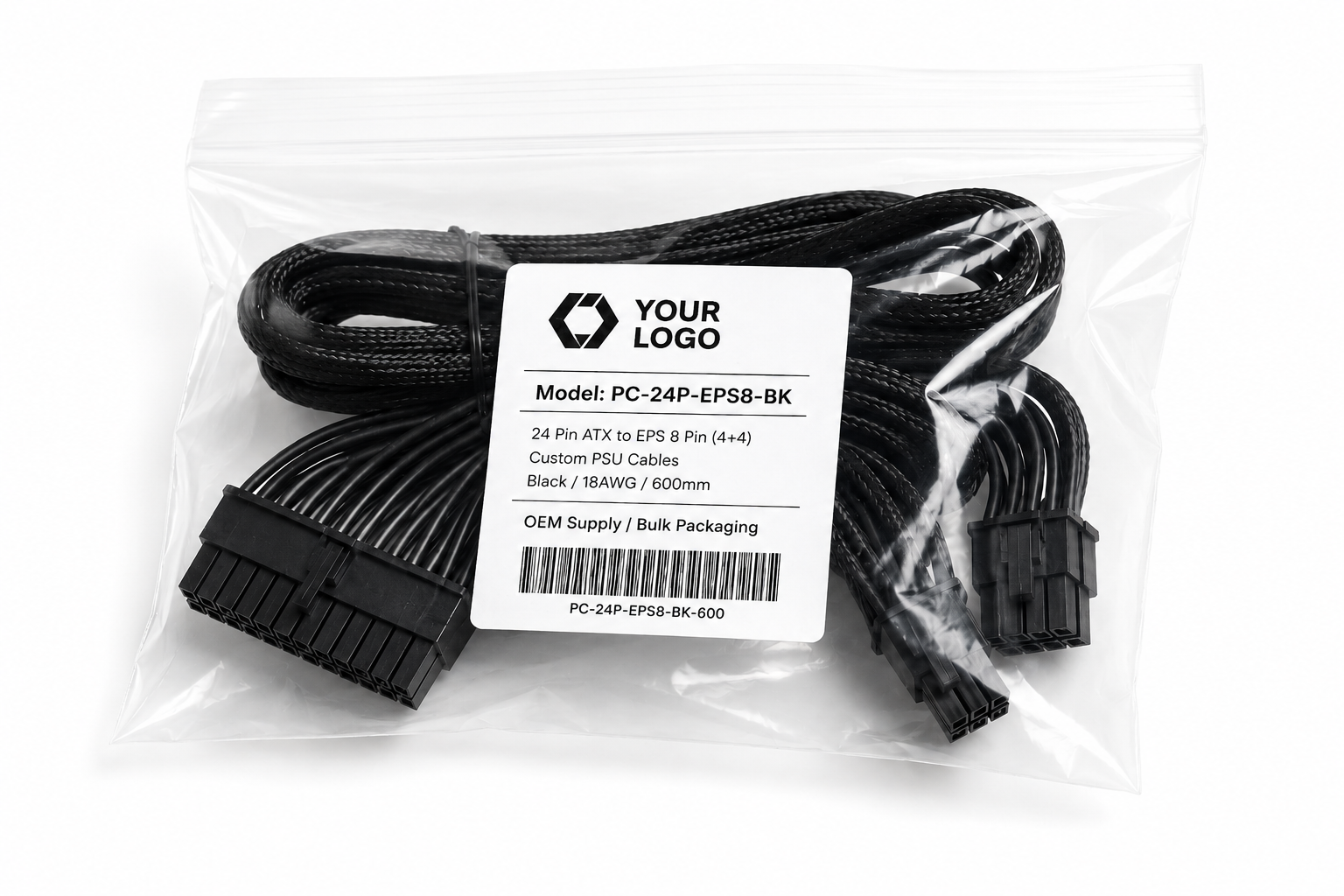

Power Assemblies
Power cable assemblies may involve connector selection, wire gauge, polarity, jacket material, insulation discussion and packaging needs. Cablivo can review device power interface, cable length, AWG, connector model and target quantity before quotation. Testing items should be confirmed according to product type and application.

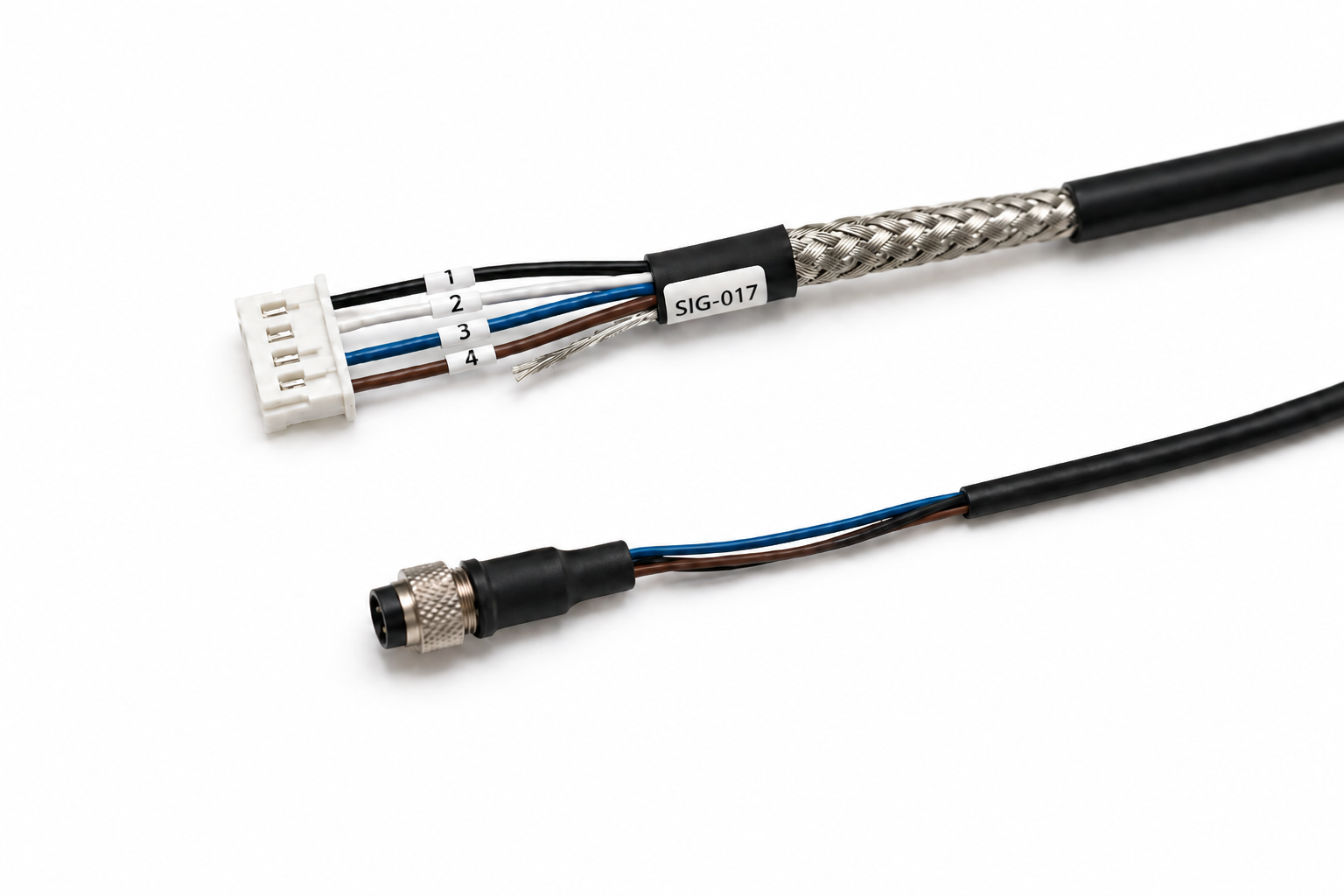

Signal Assemblies
Signal cable assemblies need attention to wire sequence, shielding direction, connector stability and functional verification. Cablivo can discuss pinout, cable structure, connector orientation, soldering needs, shielding connection and testing notes before sample development. Application details help define assembly direction.

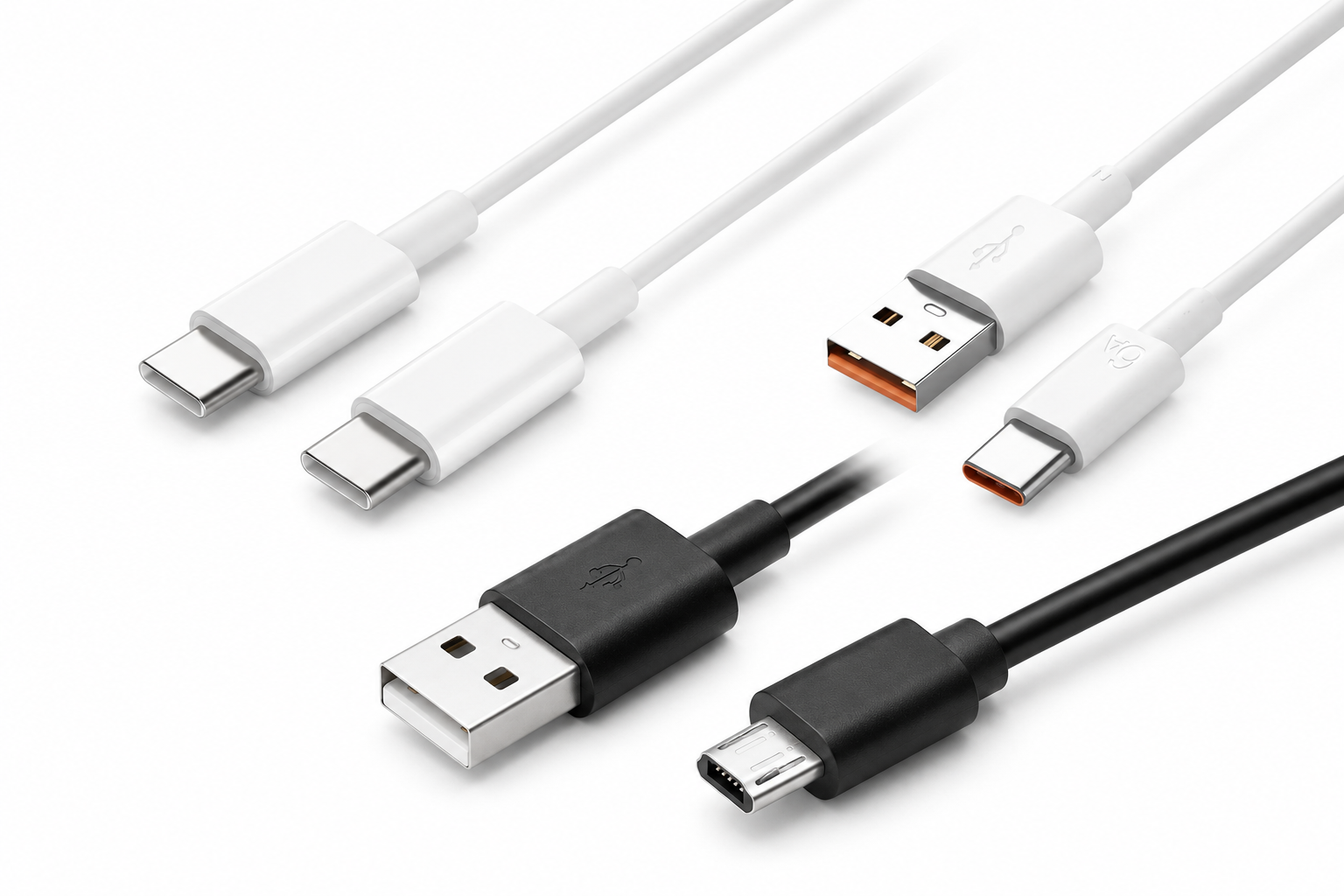

USB Assemblies
Custom USB cable assemblies can include USB-A, USB-C, Micro USB, device-specific connectors, overmold design, logo position, cable length, color, packaging and testing requirements. Cablivo supports USB cable assembly projects for electronics brands, device manufacturers, retail programs and customized product kits.

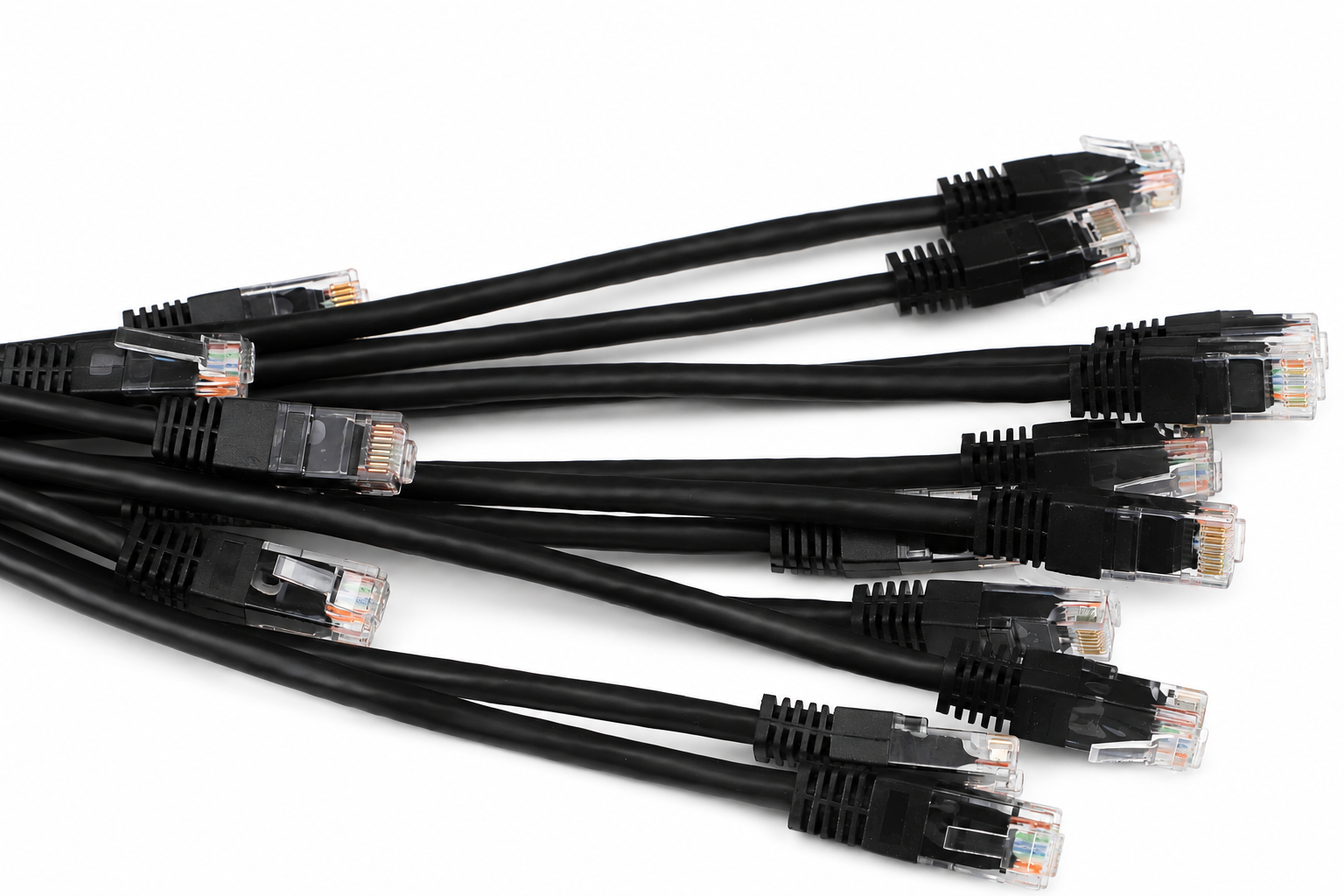

Network Assemblies
Network and Ethernet cable assemblies can involve RJ45 connectors, cable length, jacket material, color, label, packaging and application requirements. Cablivo can discuss cable structure, connector confirmation, length list, packaging plan and target market before sampling or bulk production discussion.

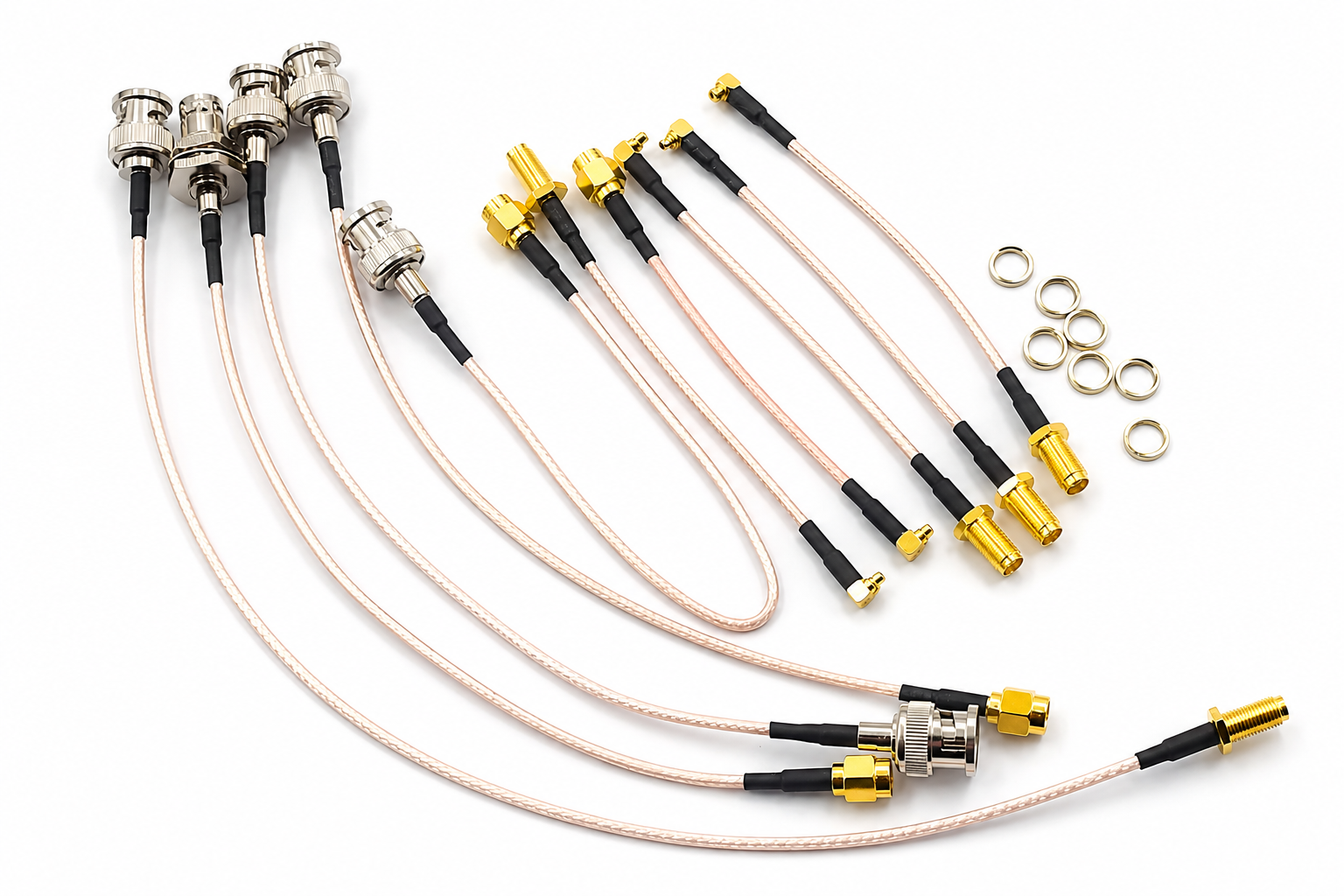

RF Coaxial
RF or coaxial cable assembly projects need careful connector, cable type, assembly direction and testing requirement review. Cablivo can evaluate connector information, cable length, sample photos and application notes before sampling. Any frequency, impedance or signal testing needs should be confirmed according to technical specifications.
Overmolded Cables
Overmolded cable assemblies can improve connector protection, strain relief, appearance consistency and handling feel. Cablivo can discuss mold shape, cable exit direction, surface texture, molded logo, connector protection and sample validation. Tooling requirement should be reviewed before quotation.

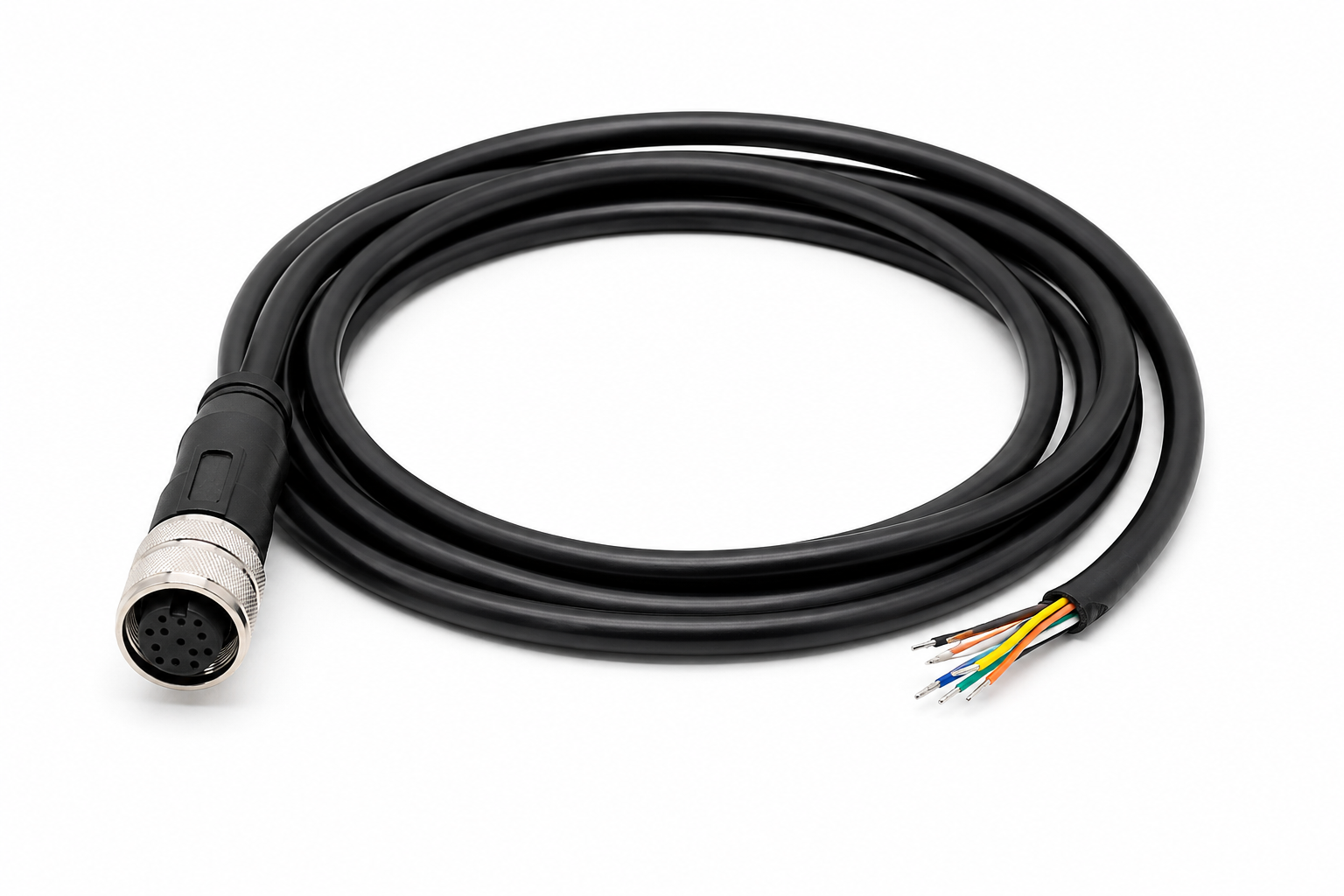

Industrial Cables
Industrial cable assemblies may need stable connectors, sleeves, labels, cable protection, installation-friendly layout and project-based testing. Cablivo can support equipment connection, automation systems, monitoring devices, control systems and other industrial project directions based on drawing, sample or interface information.

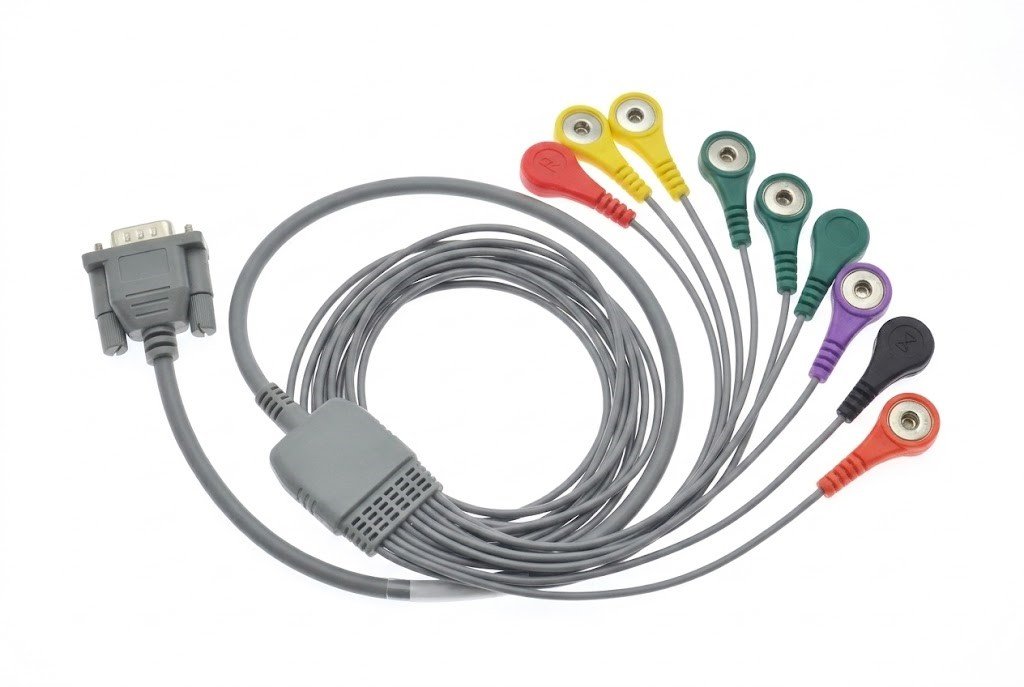

Medical Project Support
Medical device cable assembly support requires careful material discussion, connector stability, documentation sensitivity and project confidentiality. Cablivo can review drawing, sample photos, connector model, cable length, application details and testing requirements before sampling. Compliance requirements should be reviewed according to target market and device specifications.
Cable Assemblies for Different Device Applications
Each application has different assembly, handling, packaging and testing needs. Cablivo reviews product use before recommending structure, connector and production direction.
Consumer Electronics
Consumer electronics projects often need clean appearance, stable connector fit, logo position, color matching and retail-ready packaging. Cablivo can support USB, charging, power, audio, signal and accessory cable assembly projects with sample review, packaging discussion and SKU control.
Industrial Equipment
Industrial equipment projects often require cable assemblies for device connection, control systems, automation units and machine interfaces. Cablivo can review installation direction, terminal model, cable length, sleeve needs, wire labels, connector protection and testing requirements before prototype development.
Telecom Equipment
Telecom equipment cable assemblies may involve RF, coaxial, network, signal and power connection directions. Cablivo can discuss connector type, cable length, cable structure, labeling and testing requirements before sampling. Technical specifications should guide final testing scope.

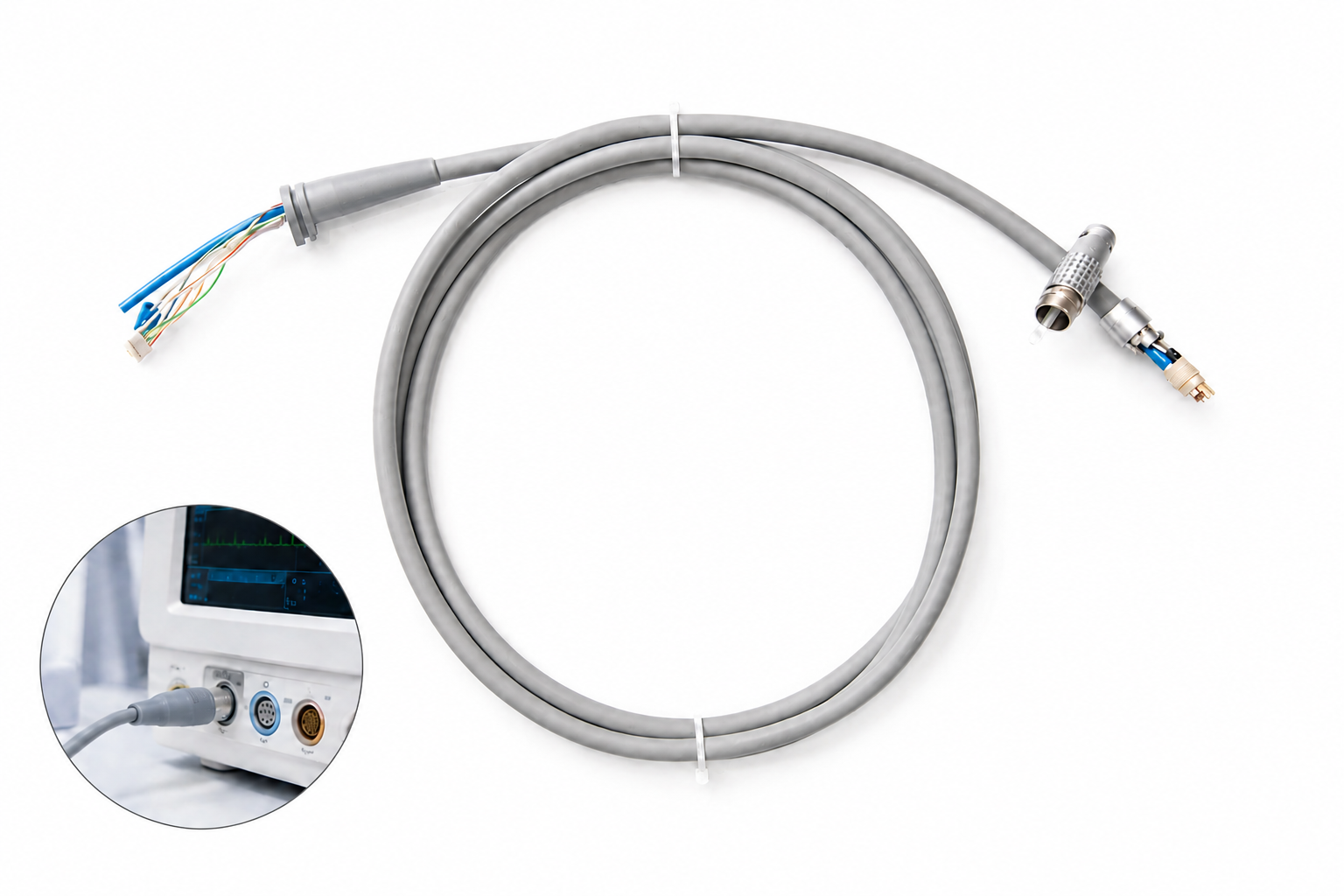

Medical Devices
Medical device project teams often care about connector stability, material selection, cable flexibility, documentation, sample validation and confidentiality. Cablivo can review sample photos, drawings, connector models, cable length and testing requirements before sample preparation.
Automotive Electronics
Automotive-related electronics may need harnesses, terminals, labels, protective sleeves and stable assembly handling. Cablivo can discuss terminal model, wire gauge, housing, branch direction, cable protection and test requirements according to project drawings or old samples.
Smart Hardware
Smart hardware devices often need compact connectors, clean overmold design, flexible cable handling and repeatable packaging. Cablivo can support cable assemblies for smart devices, accessories, charging equipment and interface modules through sample development and production review.
Automation Systems
Automation projects may involve wire harnesses, sensor cables, control cables and industrial device connection assemblies. Cablivo can review branch layout, connector fit, wire labels, sleeve structure and OQC points before bulk production planning.
Outdoor Equipment
Outdoor equipment may need jacket material discussion, connector protection, cable exit direction, overmold structure and packaging protection. Waterproof-related performance and testing requirements should be reviewed according to connector type, sealing structure and project needs.
Custom Specifications for Cable Assembly Projects
Cablivo reviews cable assembly details before quotation and sampling, helping project teams confirm manufacturable specifications and avoid vague RFQ information.
Cable Length
Cable length affects device connection, installation, packing size and material cost. Cablivo can review length drawings, length lists, tolerance needs, SKU breakdown and application environment before quotation. For multi-SKU programs, each length version should be listed with quantity and packaging method.
Connector Type
Connector selection affects fit, function, durability and lead time. Cablivo can review connector model, mating device, datasheet, housing, pin count, terminal type and sample photos before prototype work. Connector availability should be checked before confirming quotation and sampling schedule.
Wire Gauge
Wire gauge and cable structure should match power, signal, flexibility and installation needs. Cablivo can review AWG, conductor material direction, insulation, outer jacket, multi-core structure and application notes before production discussion. Final wire gauge should be confirmed before sampling.
Pinout Polarity
Pinout and polarity confirmation helps reduce functional failure risk. Cablivo can review pinout tables, wiring diagrams, old samples, connector direction and testing notes. For assemblies used in devices, polarity and continuity checks should be discussed according to project requirements.
Jacket Material

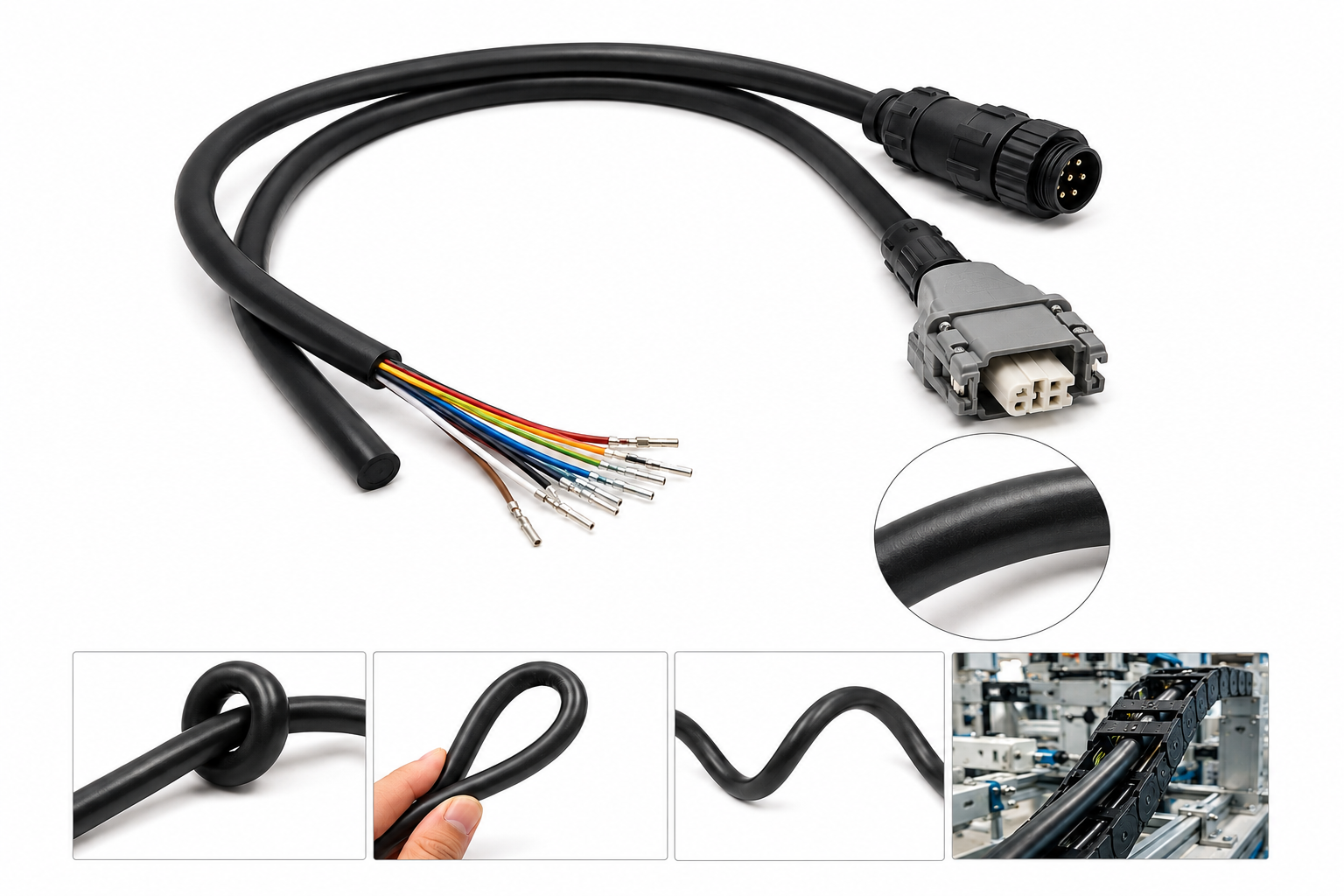

Jacket material affects flexibility, appearance, handling feel and application suitability. Material selection may involve PVC, TPE, TPU, PUR, silicone, PE or related options. Final selection depends on application requirements, target market, cost direction, testing needs and supplier documents.
Shielding Structure
Shielding may be required for signal, RF, data or industrial cable assembly projects. Cablivo can discuss foil shielding, braided shielding, drain wire, cable structure and termination method based on application. Testing requirements should be confirmed according to technical specifications.

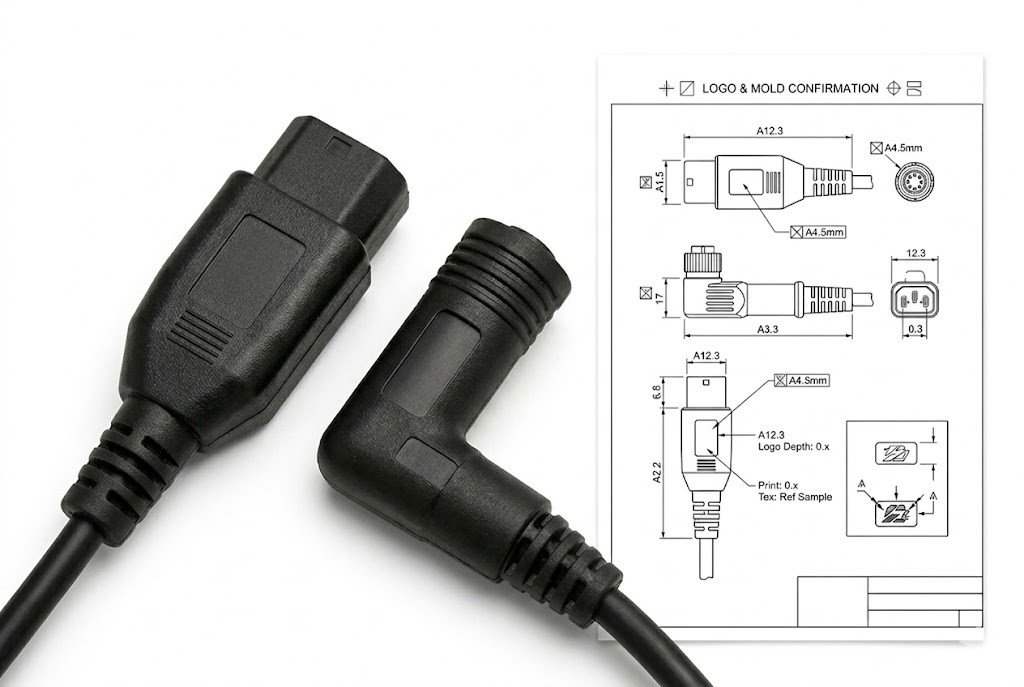

Overmold Design
Overmold design affects connector protection, strain relief, cable exit direction, logo placement and appearance consistency. Cablivo can review connector structure, mold shape, surface texture, cable bend direction and tooling need before quotation or sample development.
Logo Label
Logo and label execution can support brand programs, industrial identification and warehouse control. Cablivo can discuss molded logo, printed logo, cable label, wire label, barcode label and SKU label. Artwork or label files should be confirmed before packing production.

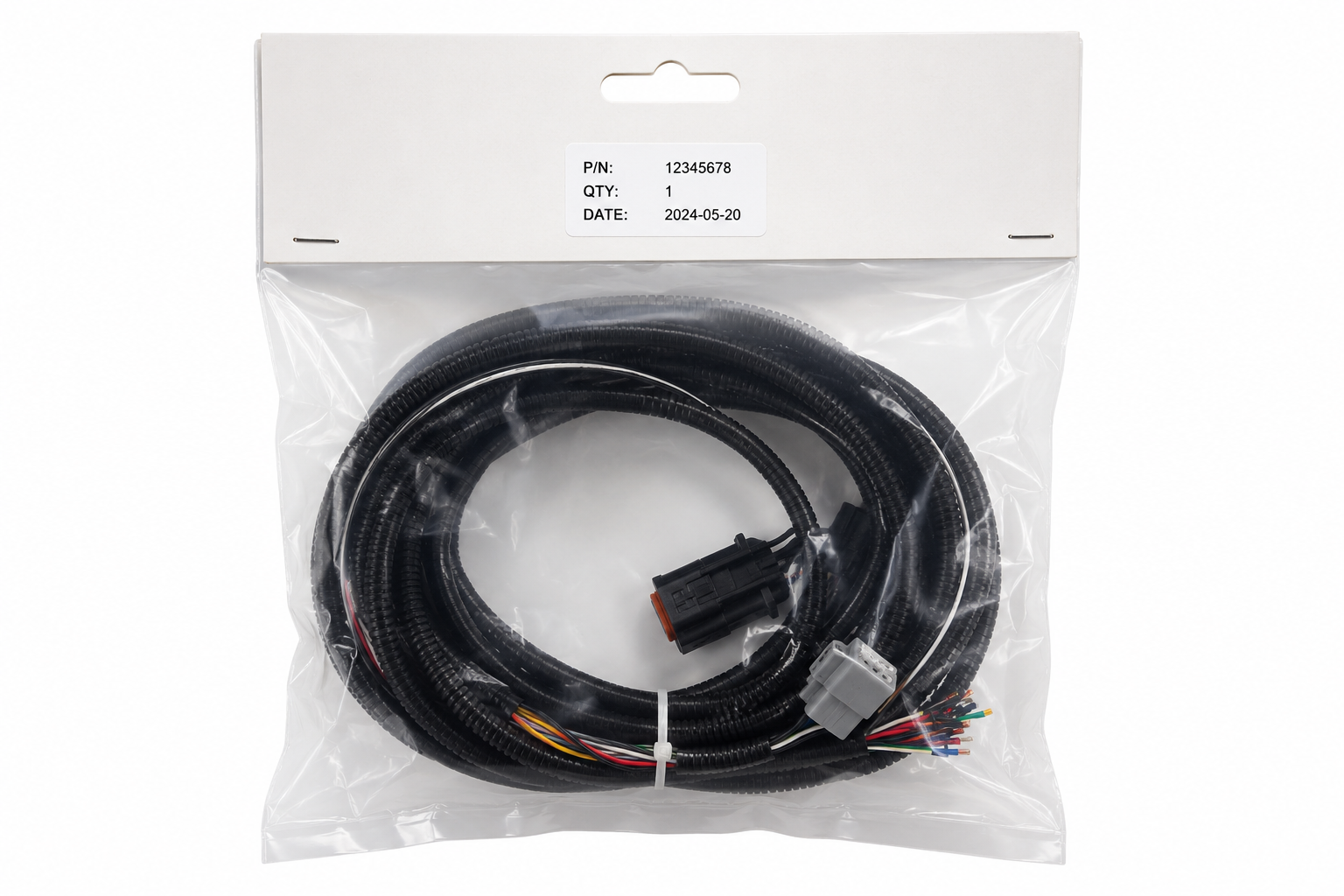

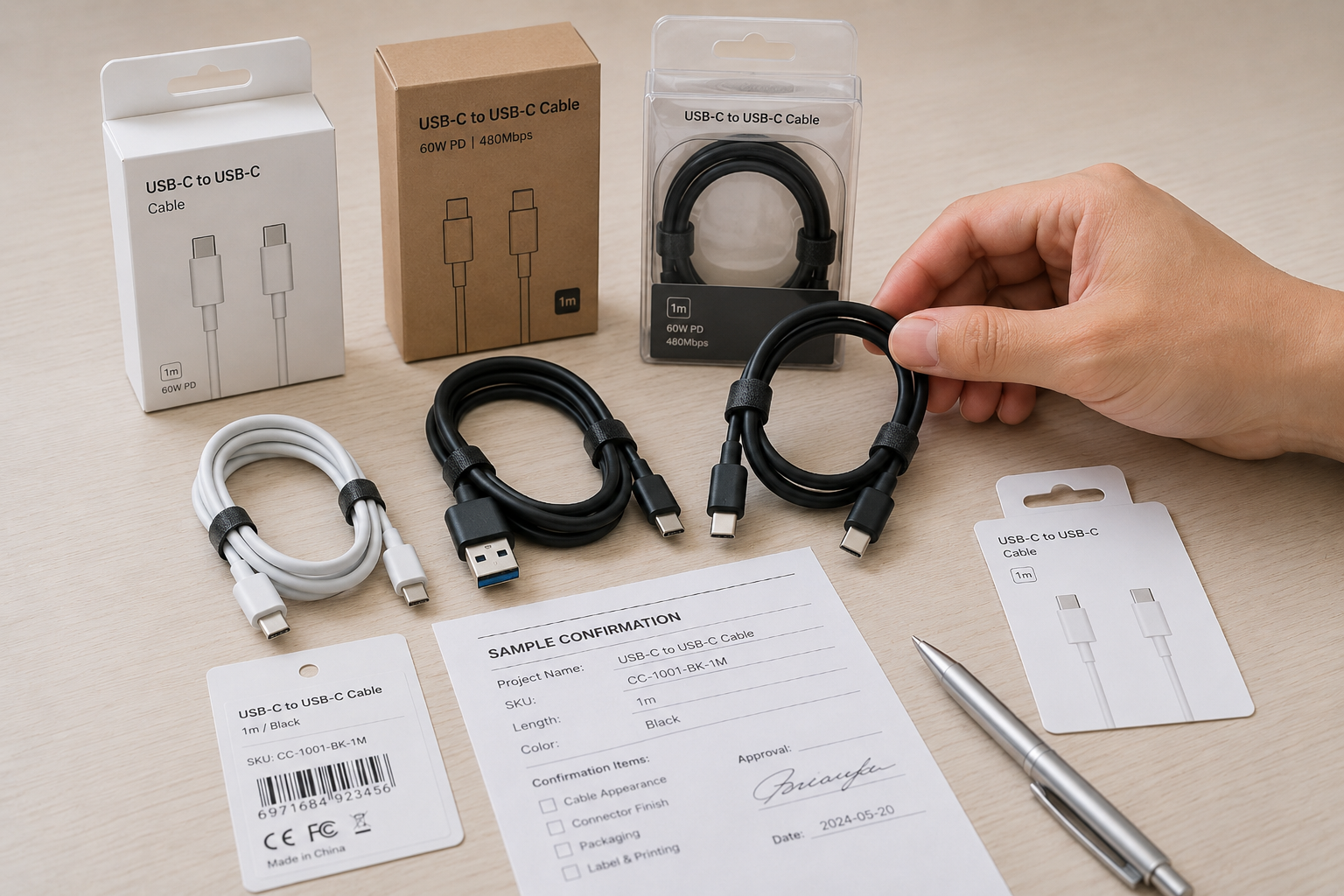

Packaging Plan
Packaging can include bulk packing, OPP bag, poly bag, zip bag, retail box, insert card, barcode label, SKU label, export carton and carton mark. Packaging plan affects MOQ, cost, packing time, carton size and shipment preparation.
From Drawing and BOM to Manufacturable Samples
Cablivo reviews technical files before sampling, helping teams identify missing details around connector, wire sequence, material, structure, testing and packaging.
Drawing Review
Drawings help define cable length, connector layout, wire sequence, dimensions, label position and assembly structure.
Key Points:
- Cablivo can review drawings before quotation or sampling, then confirm unclear details with project teams.
- If drawings are incomplete, sample photos and interface images can support early discussion.
BOM Check
A BOM helps confirm connector, wire, terminal, sleeve, label and packaging materials.
Key Points:
- Cablivo can check whether listed parts match project needs.
- Then discuss substitution risks, connector sourcing, material availability and tooling requirements before sample preparation.

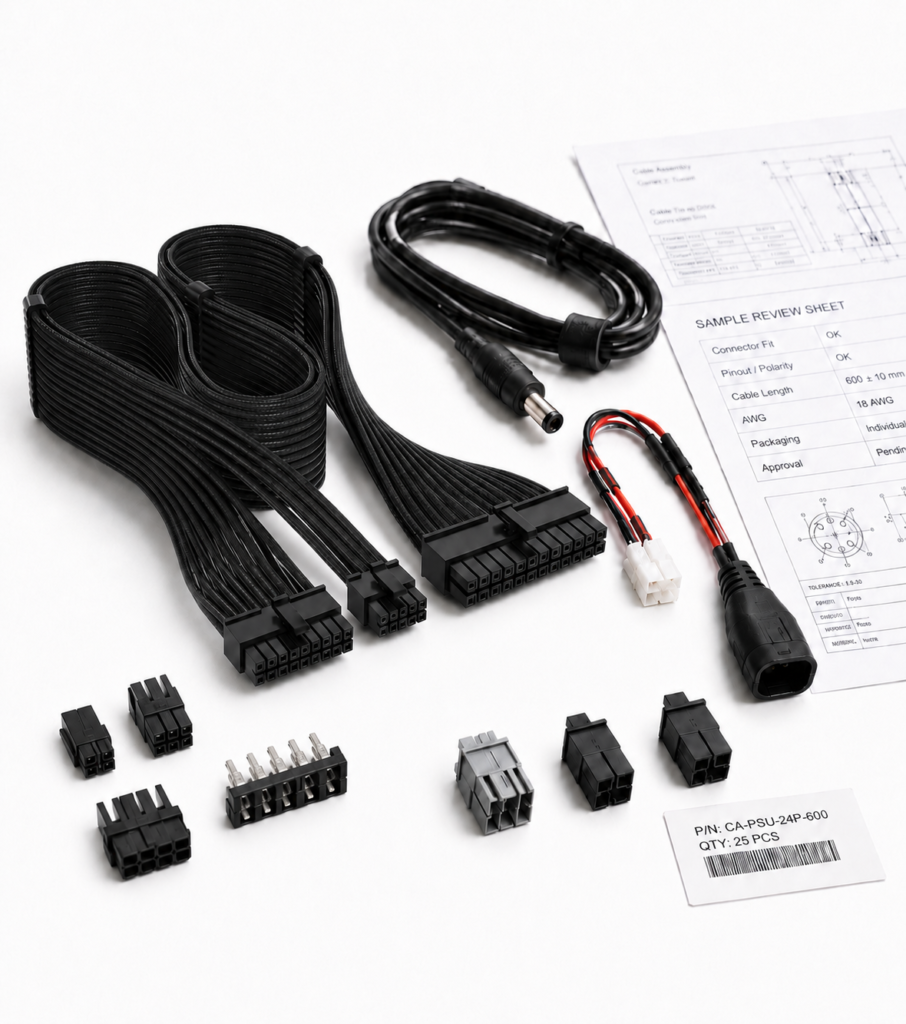

Sample Review
Old samples are useful for replacement projects or supplier change programs.
Key Points:
- Cablivo can review sample photos, connector close-ups, cable markings, label position, cable length, jacket material and packaging style before preparing prototype direction.
Pinout Review
Pinout review helps reduce wrong connection risk before assembly.
Key Points:
- Cablivo can check wiring diagrams, pin tables, connector direction and testing notes.
- For power or signal assemblies, polarity, continuity and function check requirements should be confirmed before sample development.
Material Review
Material review covers conductor direction, jacket material, insulation, shielding, sleeve, heat shrink, overmold material and packaging protection.
Key Points:
- Selection should match application, flexibility, durability, cost, target market and testing needs rather than a single generic material claim.
Production File
After sample approval, final drawing, final BOM, approved sample, material list, connector model, label file and packaging file should guide bulk production.
Key Points:
- Clear final files help reduce sample-to-production mismatch and support repeat order control.

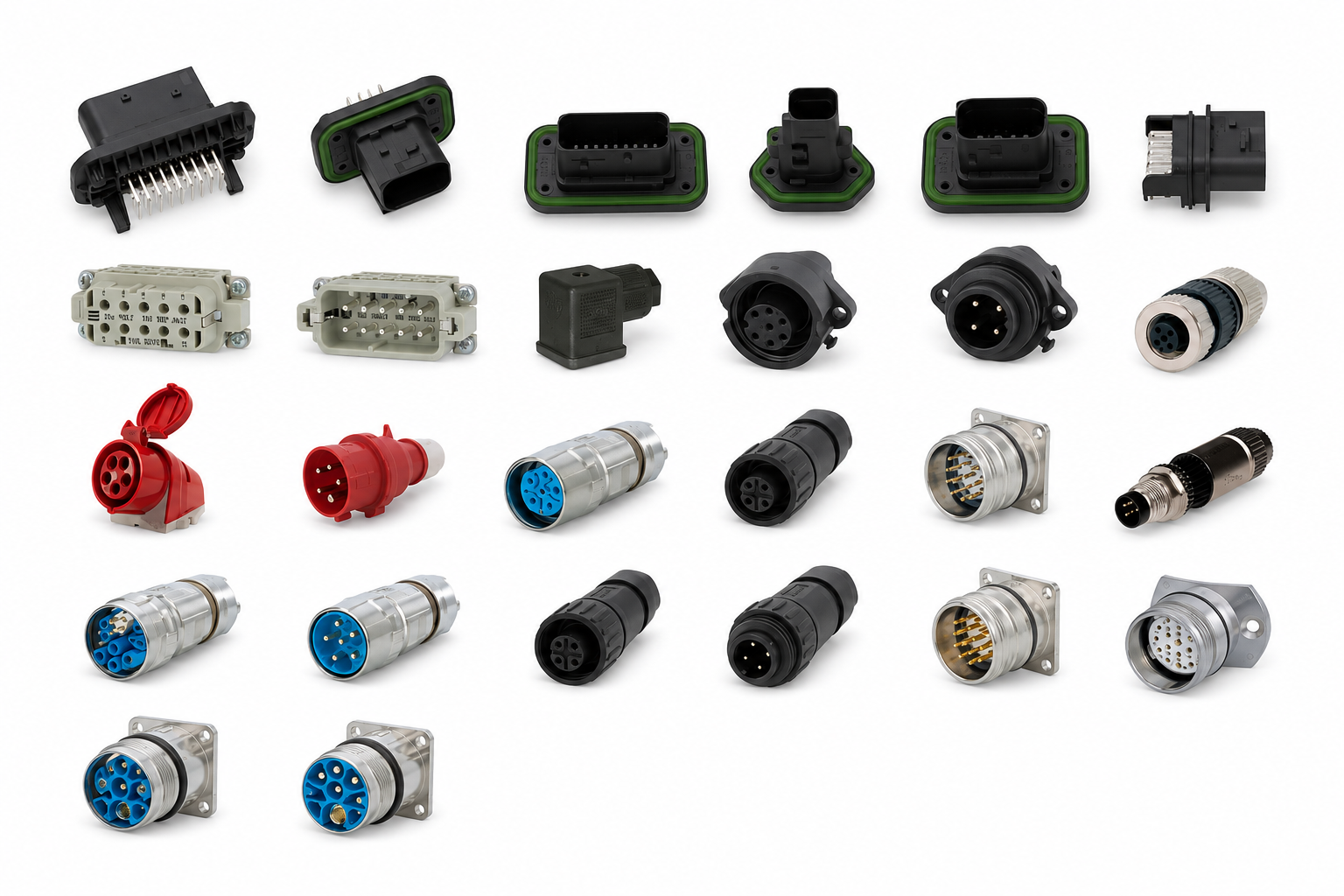

Connector Confirmation Before Cable Assembly Sampling
Connector accuracy has major influence on fit, function, appearance and production schedule. Cablivo reviews connector information before sample development
Connector Model
Connector model, brand equivalent, housing, terminal and pin count should be checked before sampling. If an exact model is not available, Cablivo can review photos, device interface images, datasheets and old samples to discuss possible directions before quotation

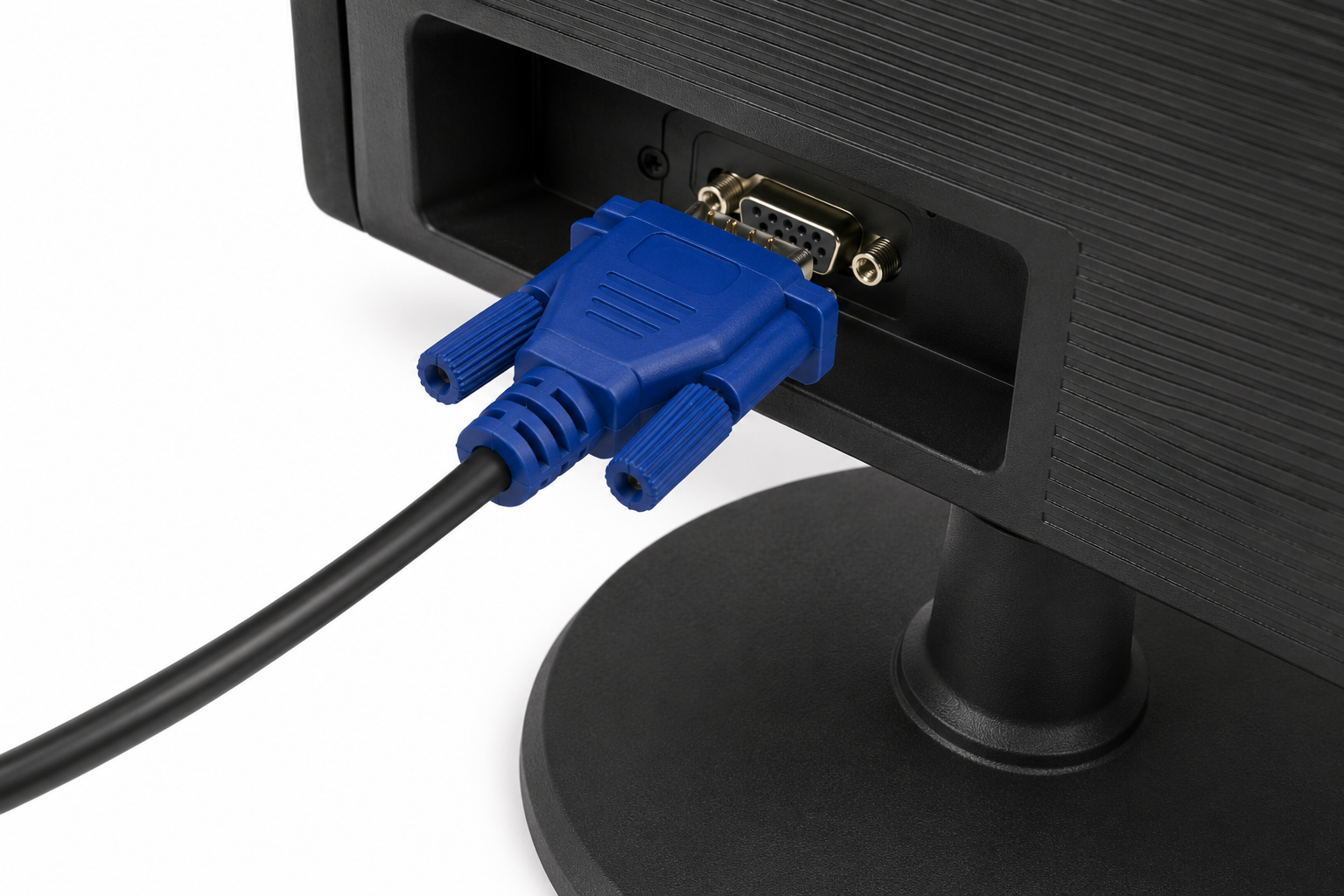

Mating Interface
A connector should match the real device interface, not only a drawing symbol. Cablivo can review mating device photos, insertion direction, latch structure, spacing, cable exit direction and assembly clearance before prototype preparation.

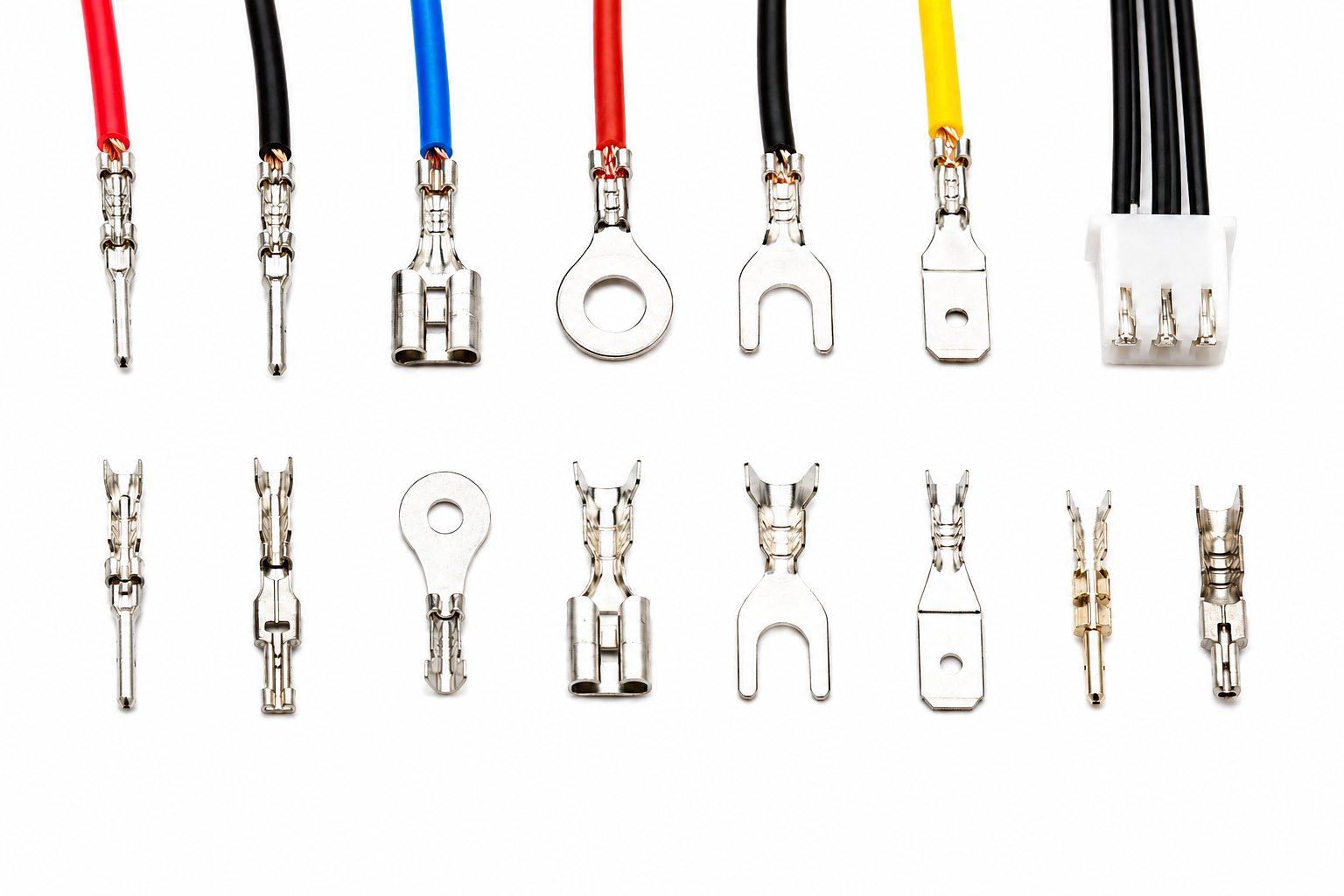

Terminal Match
Terminal model and wire gauge must match assembly requirements. Cablivo can discuss terminal crimping, wire size, housing, crimping position, visual inspection and pull force discussion according to project needs. Terminal details should be confirmed before bulk production.
Cable Exit
Cable exit direction affects installation, bending, overmold shape and packaging protection. Cablivo can review straight exit, angled exit, molded boot direction, strain relief area and connector protection before sample design or tooling discussion.
Fit Check
Connector fit should be confirmed through sample validation when needed. Cablivo can help review connector dimensions, interface photos, old samples and application notes. Final connector choice should be approved before production files are locked.
Sourcing Review
Connector sourcing affects cost, lead time, MOQ and production schedule. Cablivo can check connector availability before confirming sample schedule. If substitution is required, appearance, structure, function, cost and delivery impact should be reviewed before approval.
Material and Structure Options for Cable Assemblies
Cable assembly quality depends on structure, material, connector matching and testing requirements. Cablivo discusses material direction based on project use

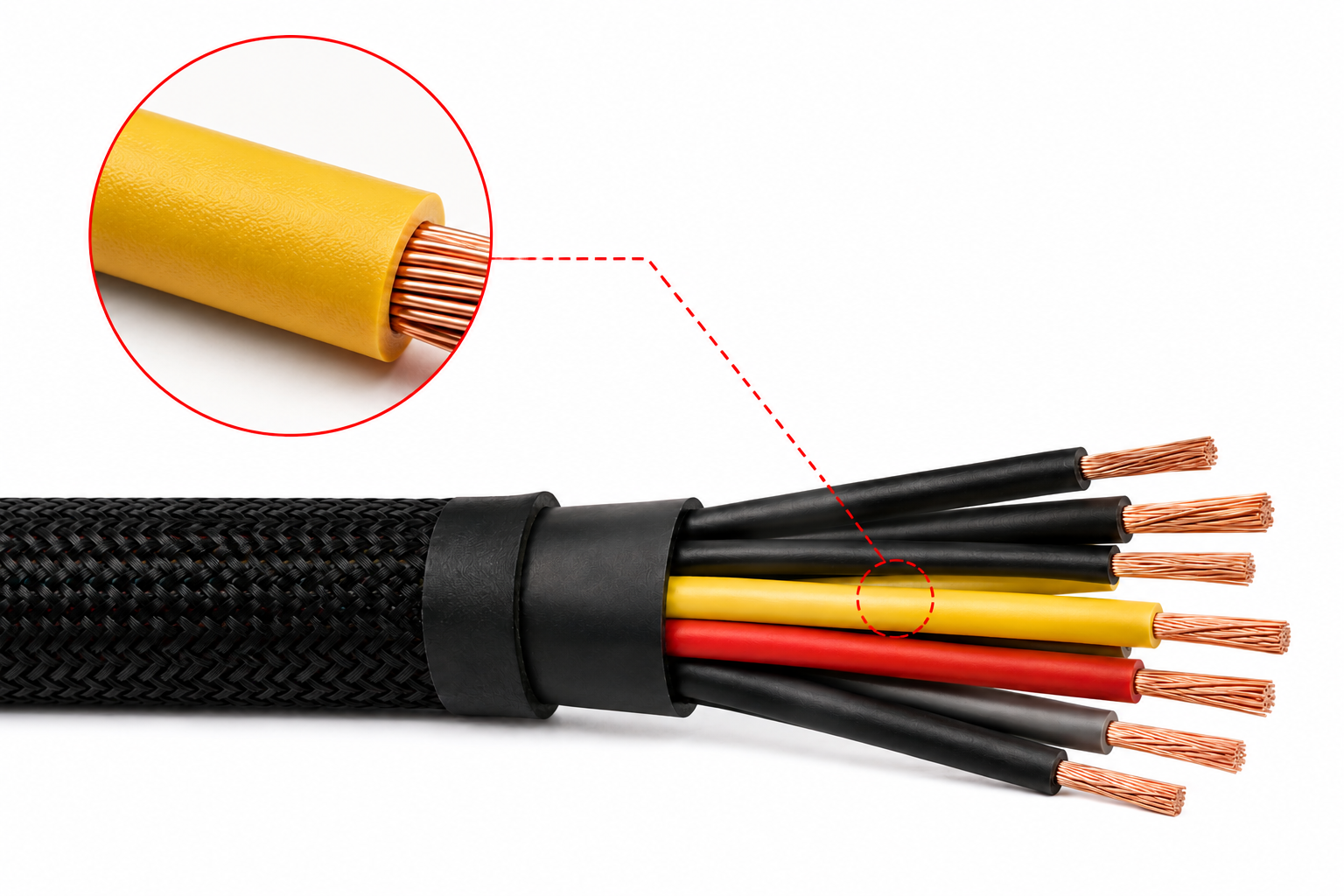

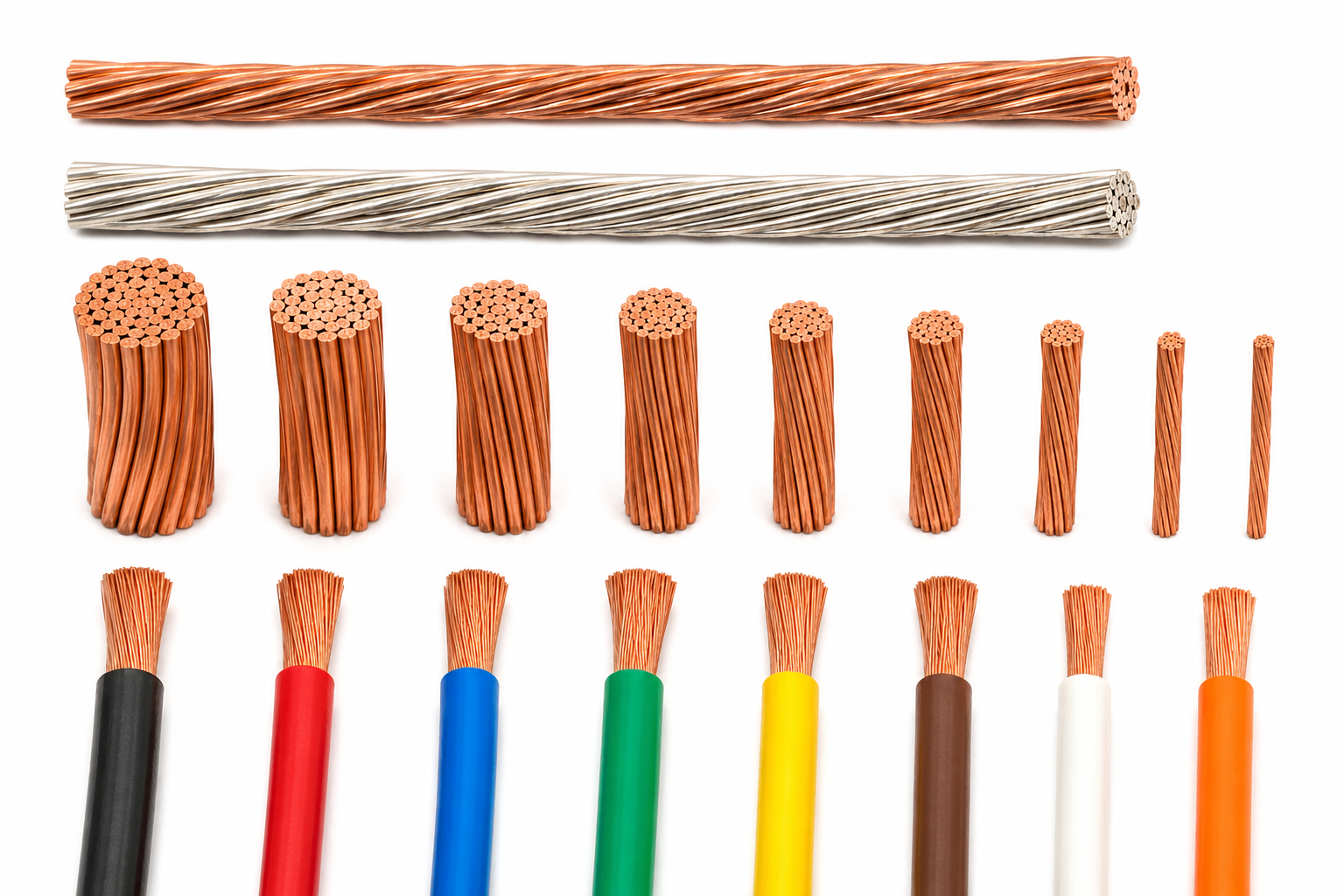

Copper Conductor
Conductor direction influences flexibility, current carrying needs and assembly processing.
Key Points:
- Cablivo can discuss copper or tinned copper direction according to product type, wire gauge, application and testing requirements.
- Final material selection should be confirmed before sampling and bulk production.
PVC Jacket
PVC can be considered for many cable assembly projects requiring balanced cost, appearance and handling.
Key Points:
- Jacket color, surface feel, flexibility and cable marking should be confirmed based on application.
- Material compliance should follow actual material documents and target market requirements.
TPE TPU
TPE and TPU directions may be discussed when flexibility, appearance or handling feel matters.
Key Points:
- Cablivo can review product application, cable bend needs, connector structure and packaging plan before material selection.
- Final performance requirements should come from project specifications.

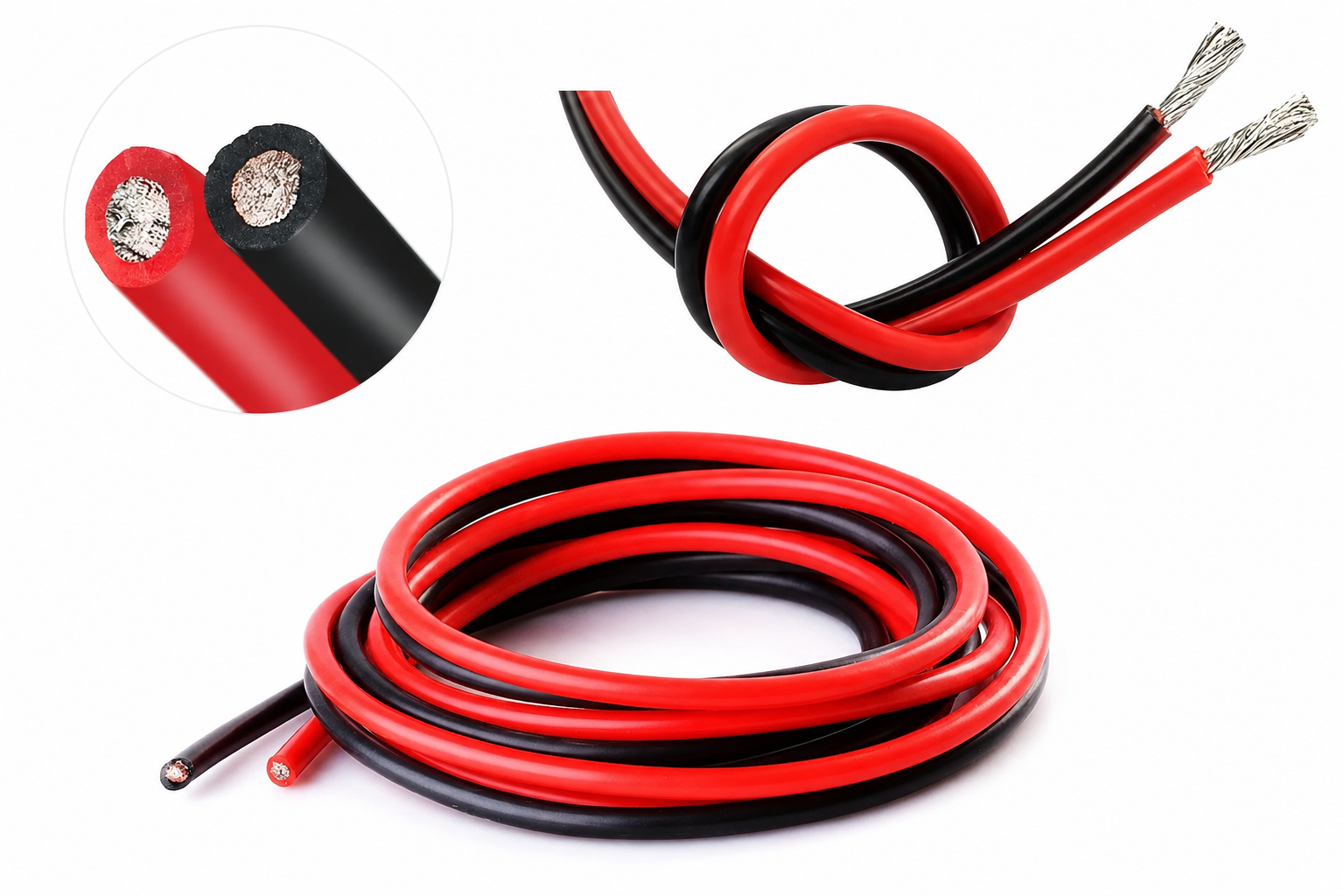

Silicone Cable
Silicone cable direction may suit projects needing soft handling or flexible movement.
Key Points:
- Cablivo can review application details, cable length, connector type, overmold need and testing requirements before recommending material direction.
- Specific performance data should be confirmed by actual material documents.
Shielding Layer
Shielding may involve foil, braid or related structure depending on signal, data, RF or industrial requirements.
Key Points:
- Cablivo can review cable structure, connector termination, assembly method and testing requirements before sampling.
- Shielding direction should follow technical specifications.

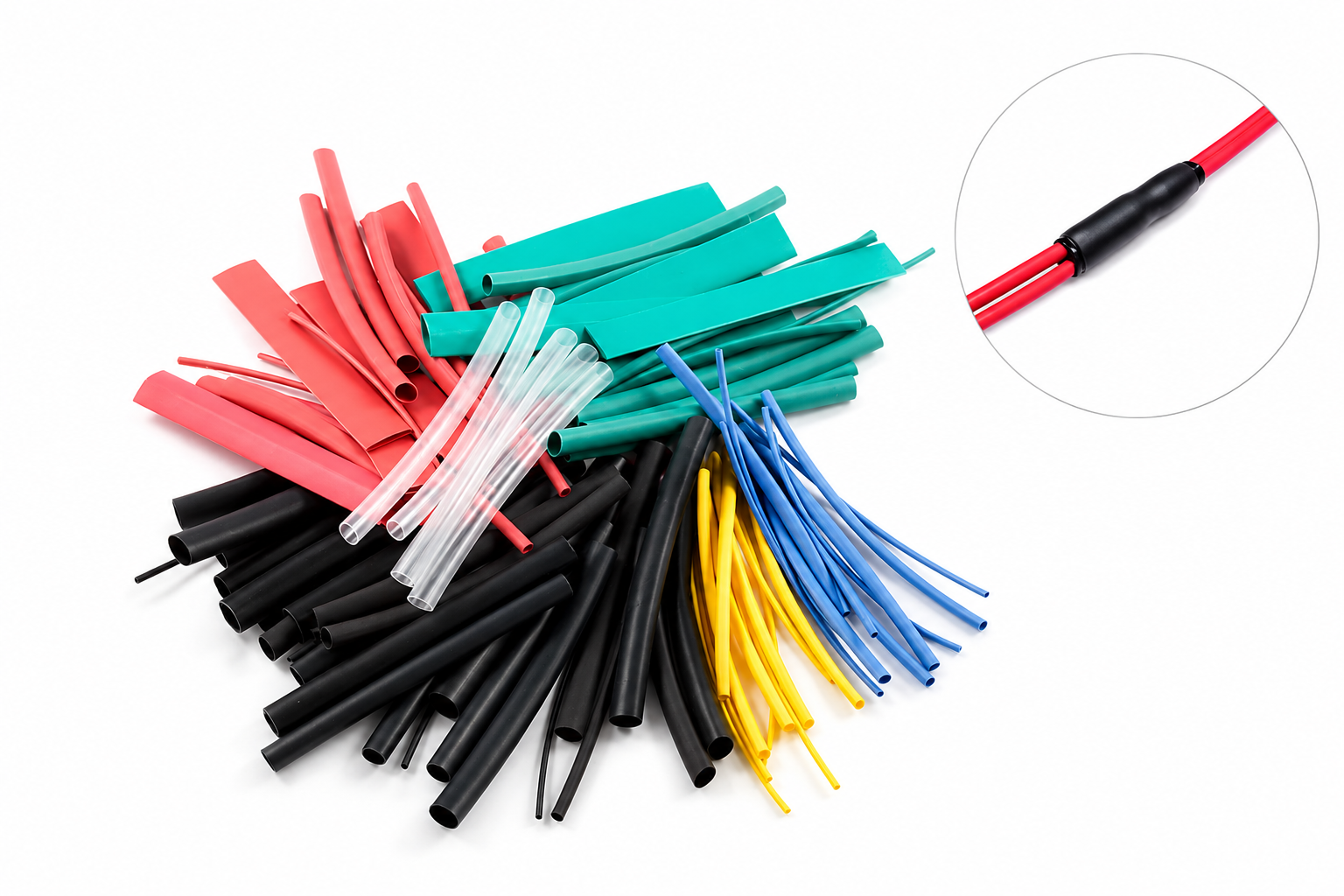

Heat Shrink
Heat shrink tube can support insulation, protection, identification or assembly finishing.
Key Points:
- Cablivo can discuss position, length, color, shrink area and inspection point.
- Heat shrink details should be included in drawing, sample or production file before bulk production.

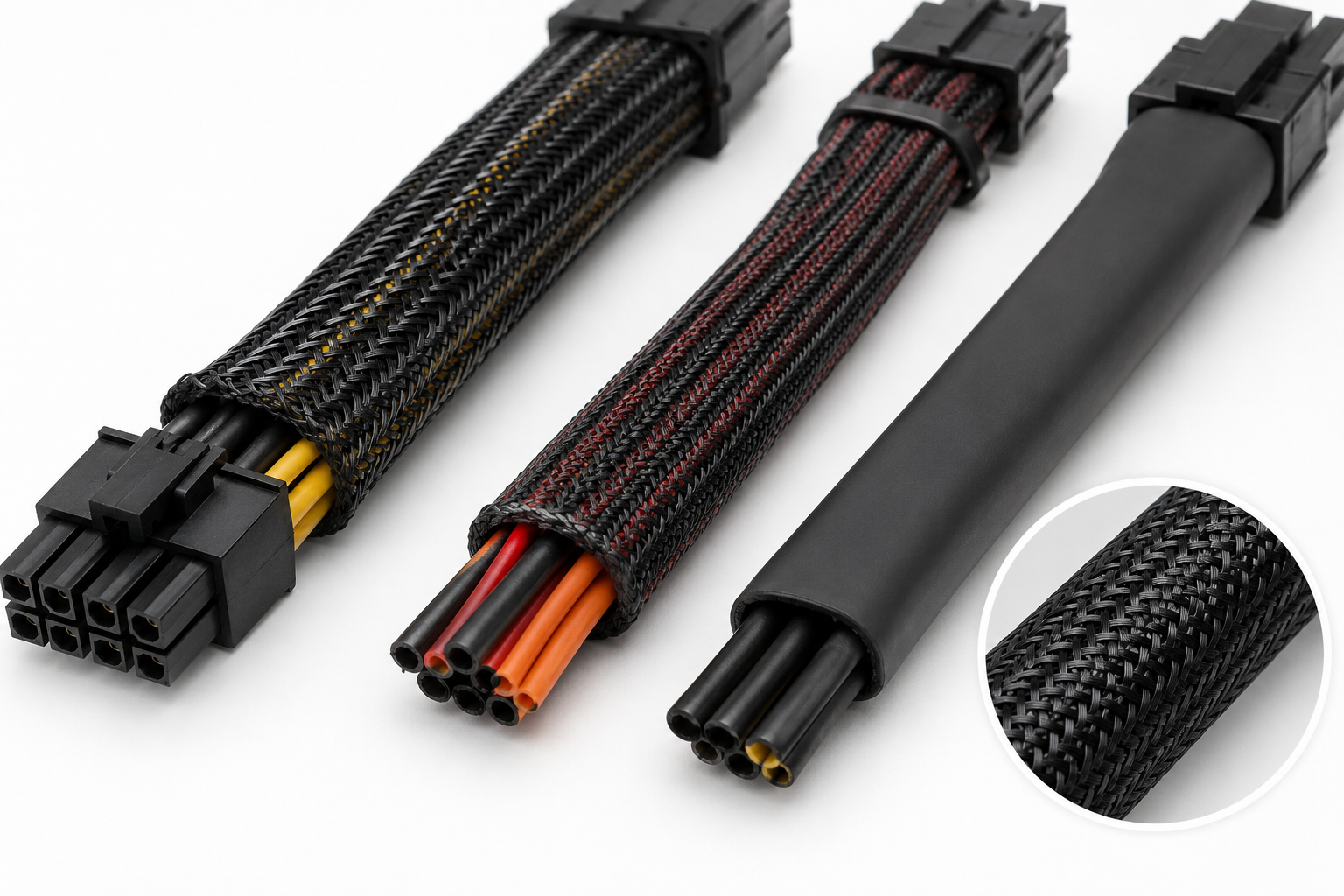

Protective Sleeve
Protective sleeves can help with abrasion protection, grouping, appearance and installation handling.
Key Points:
- Cablivo can discuss braided sleeve, PVC sleeve, split sleeve or other directions according to application.
- Sleeve length, label position and tie points should be confirmed before sample work.

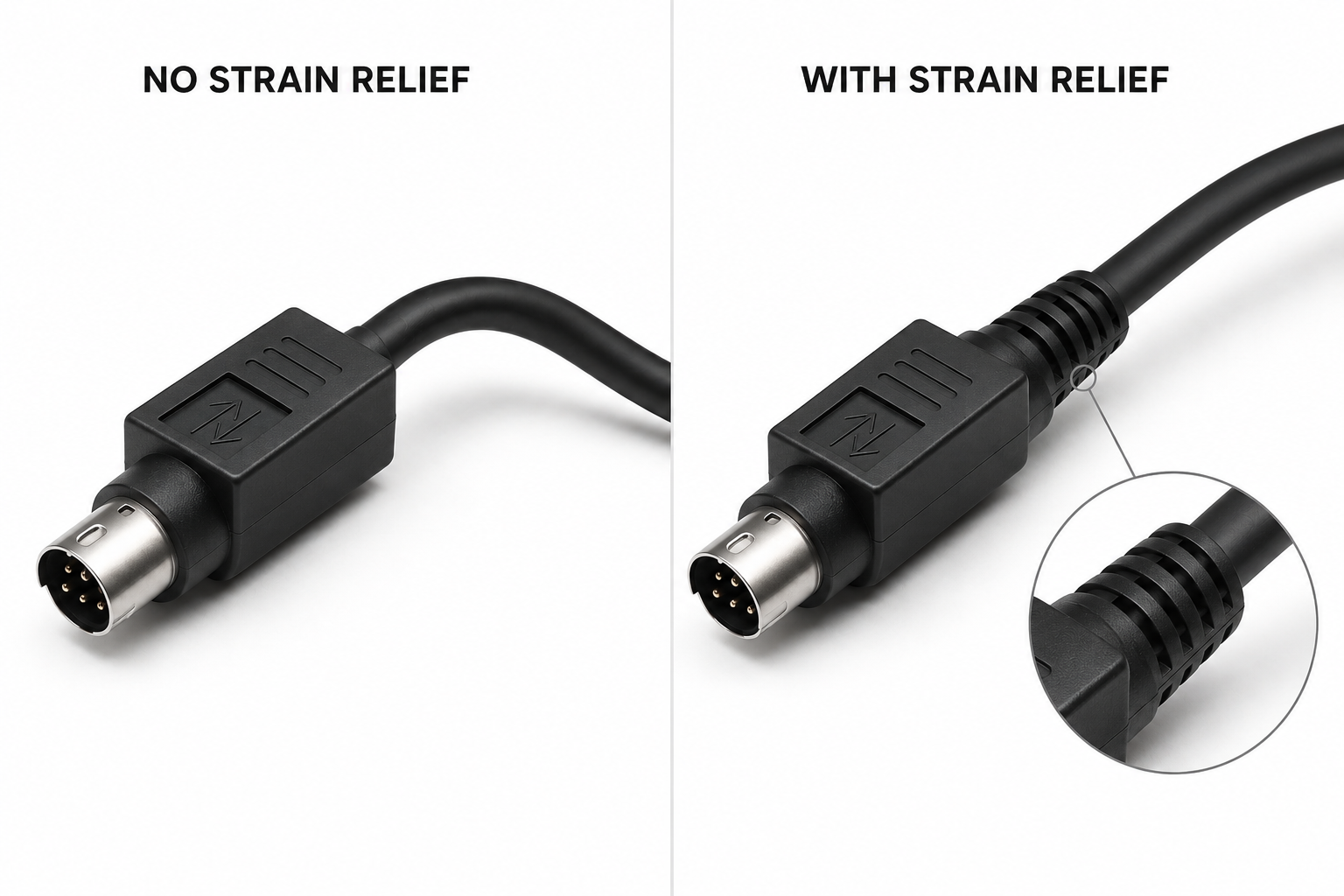

Overmold Material
Overmold material and structure affect connector protection, strain relief, surface feel and appearance consistency.
Key Points:
- Cablivo can discuss mold shape, cable exit direction, logo position and tooling need before sampling.
- Final molded shape should be approved before bulk production.

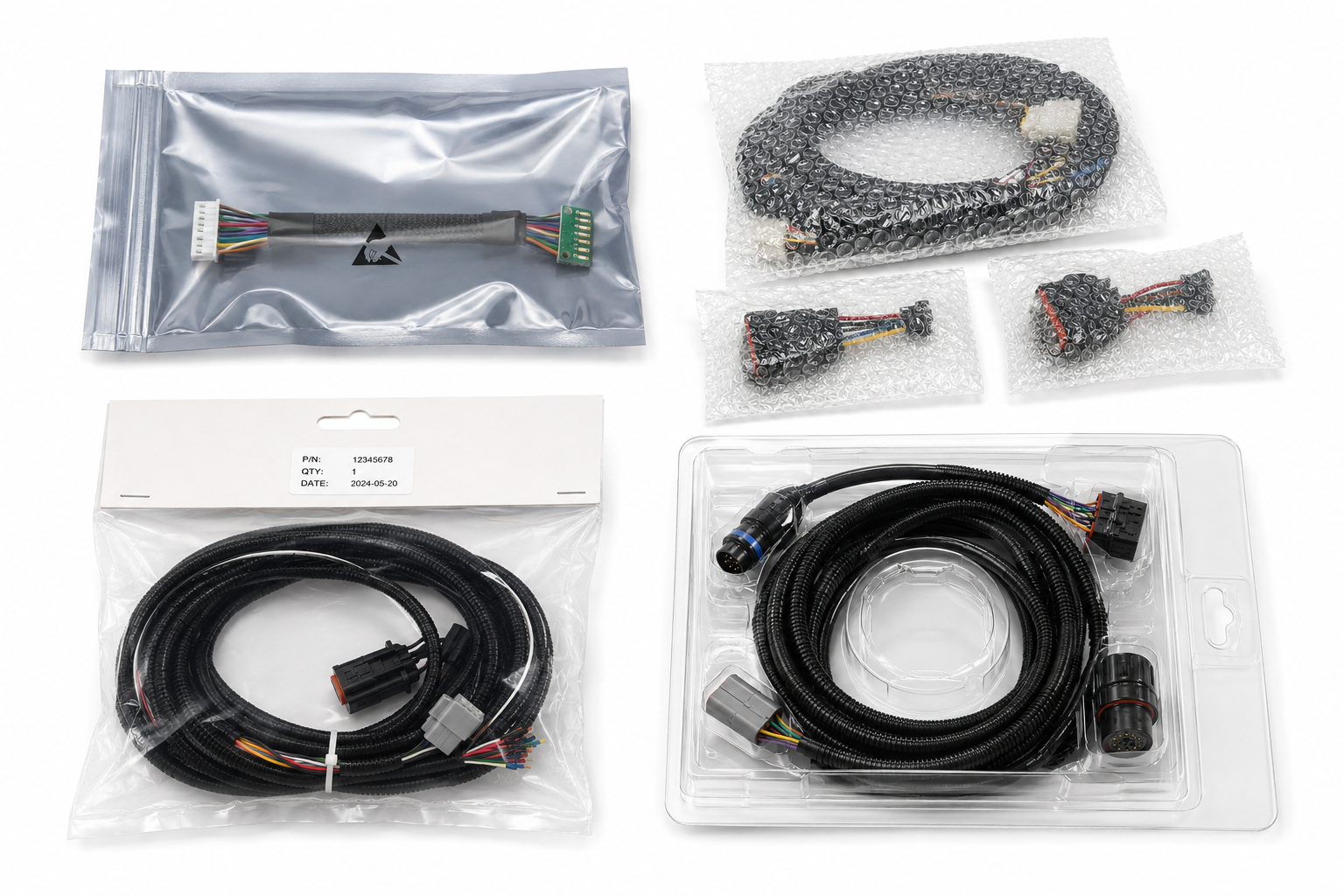

Packing Protection
Some assemblies need connector protection during packing and shipment.
Key Points:
- Cablivo can review connector shape, cable bend radius, bag size, separator needs, carton packing and label position.
- Packaging protection helps reduce handling damage risk during transport and warehouse preparation.
Sample Development Before Bulk Cable Assembly Production
A sample is not only a product preview. It helps confirm connector fit, cable length, material, function, appearance, label and packaging direction before production.
File Review
Sample development starts with drawing, BOM, old sample photos, connector model, cable length, wire gauge, application details, testing notes and target quantity.
Key Points:
- Cablivo reviews available information first.
- Then points out missing details needing confirmation before prototype preparation.
Spec Confirmation
Specification confirmation covers connector, pinout, polarity, wire gauge, material, cable length, overmold structure, label position and packaging direction.
Key Points:
- Clear specs help reduce sample mistakes and later production mismatch.
- For complex assemblies, a revision record can be discussed.
Material Preparation
Material and connector preparation depends on availability, MOQ, sourcing route and project requirements.
Key Points:
- Connector sourcing, cable material, terminals, sleeves, heat shrink, overmold tooling and packaging samples may affect sample schedule and cost.
- Cablivo confirms key preparation points before sample work.
Prototype Sample
Material and connector preparation depends on availability, MOQ, sourcing route and project requirements.
Key Points:
- Connector sourcing, cable material, terminals, sleeves, heat shrink, overmold tooling and packaging samples may affect sample schedule and cost.
- Cablivo confirms key preparation points before sample work.
Internal Check
Prototype samples help verify connection, appearance, handling, label position and packaging direction.
Key Points:
- Sample feedback can be reviewed.
- Sample revision can be discussed according to confirmed project requirements.
- Approval helps define final production files.
Sample Approval
Before sample shipment, Cablivo can check visible assembly points, connector direction, cable length, label position and project-based testing items.
Key Points:
- Testing scope should match product type, application and engineering requirements.
- Testing scope should not rely on a generic claim.
Production Process for Power Cable Assemblies
Power cable production may include cutting, stripping, crimping, soldering, overmolding, assembly, testing, labeling and packaging, depending on cable structure.
A Clear Process for Custom Power Cable Orders
Cablivo’s production process depends on product structure. A simple DC power cable may require cable preparation, stripping, soldering or crimping, connector assembly, polarity check and packing. A PSU cable kit may require cable cutting, sleeve preparation, connector assembly, pinout review, comb fit and retail packing. A power harness may require branch layout, terminal crimping, wire number labels, continuity test and industrial packing.
Typical production flow:
Material and connector preparation
Cable cutting and stripping
Terminal crimping or soldering
Connector assembly
Sleeve, heat shrink or overmold processing
Continuity, polarity or fit check
Appearance and label inspection
Packing, carton mark and shipment preparation
Overmolded Cable Assembly Development Support
Overmolding involves connector protection, strain relief, appearance, cable exit direction and sample validation. Cablivo supports molded cable projects with in-house injection molding capacity.
Mold Shape
Mold shape affects product appearance, holding feel, connector protection and installation clearance.
Key Points:
- Cablivo can review connector size, cable diameter, mold length, surface area, logo position and device interface before tooling discussion or prototype evaluation
Strain Relief
Strain relief helps protect the transition area between connector and cable.
Key Points:
- Cablivo can discuss bending direction, cable exit angle, molded boot length and handling requirements according to application.
- Final structure should be confirmed through drawing or sample validation.
Exit Direction
Cable exit direction can be straight, angled or project-specific according to device layout and installation space.
Key Points:
- Cablivo can review interface photos, connector orientation, bend direction, overmold space and packaging needs before molded sample development.
Logo Position
Molded logo or printed logo can support brand programs.
Key Points:
- Logo size, location, depth, color and surface texture should be confirmed before tooling or sample preparation.
- Cablivo can discuss artwork files, brand appearance and bulk production repeatability.
Sample Validation
Overmolded sample validation helps confirm connector fit, molded appearance, cable exit, strain relief, surface texture and logo result.
Key Points:
- Feedback can be reviewed before revised sample or final production preparation.
- Approved molded sample should guide bulk production.
Tooling Review
Tooling need depends on connector, mold shape, overmold material, logo, cable exit and production quantity.
Key Points:
- Cablivo can discuss tooling direction before quotation.
- Tooling lead time and production schedule should be confirmed after structure and sample requirements are reviewed.
MOQ and RFQ Details for Cable Assemblies
Accurate quotation depends on technical files, quantity, connector sourcing, material, testing, packaging and production requirements. Cablivo reviews these details before final pricing.
MOQ From 500
MOQ starts from 500 pcs for many custom cable assembly projects.
What We Confirm:
- Final MOQ depends on connector type, cable structure, material, overmolding requirement, tooling need, packaging plan, SKU count and order quantity.
- For multi-SKU programs, quantity breakdown should be shared early.
Quote Files
For a clear quotation, send drawing, BOM, sample photos, connector model, pinout table, cable length, AWG, material requirement, testing requirement, packaging plan and target quantity.
What We Confirm:
- Complete information helps Cablivo review manufacturability.
- Complete information helps Cablivo prepare a more accurate RFQ response.
Connector Cost
Connector type can strongly affect quotation and lead time.
What We Confirm:
- Exact connector model, datasheet or sample photos help Cablivo check availability, sourcing direction and substitution risk.
- If connector alternatives are needed, structure, function, appearance, cost and delivery impact should be confirmed.
Packaging Cost
Packaging can affect unit cost, MOQ, packing time, carton size and shipment preparation.
What We Confirm:
- Retail box, barcode label, SKU label, insert card, OPP bag, poly bag and export carton needs should be confirmed before final quotation and production packing.
Sample Cost
Sample cost depends on connector sourcing, material preparation, assembly complexity, overmold tooling, packaging samples and testing requirements.
What We Confirm:
- Sample feedback can be reviewed.
- Revision direction should be confirmed before revised sample work.
Lead Time
Sample lead time and bulk production schedule depend on product structure, material availability, connector sourcing, tooling requirement, order quantity, testing scope and packaging plan.
What We Confirm:
- Production schedule should be confirmed after sample approval.
- Final order details should be locked before production schedule confirmation.
From Approved Sample to Stable Bulk Production
Bulk cable assembly production should follow approved files, approved sample, controlled materials, inspection points and confirmed packaging requirements.
Approved Sample
Approved sample provides a physical reference for connector fit, cable length, material feel, overmold appearance, label position and packaging direction. Cablivo uses approved sample together with final drawing and final BOM to reduce mismatch risk during bulk production preparation.
Final BOM
Final BOM should list connector, wire, terminal, sleeve, heat shrink, overmold material, label and packaging material clearly. Material or connector changes should be reviewed before production, especially when changes may affect appearance, function, testing or delivery.
Material Preparation
Material preparation covers connector sourcing, wire preparation, jacket material, terminals, sleeves, labels and packaging materials. Availability, MOQ, cost and delivery impact should be checked before production schedule confirmation.
Production Process
Production may involve cable cutting, wire stripping, terminal crimping, soldering, connector assembly, overmolding, heat shrink processing, assembly, labeling and packing. Each process should follow final files and approved sample requirements.
Quality Check
Cablivo uses incoming inspection, in-process inspection, outgoing inspection and project-based testing to reduce production and shipment risks. Testing items should be confirmed according to product type, application and project requirements.
Packing Control
Packing control includes barcode label, SKU label, inner bag, retail box, carton mark, packing quantity, export carton and packing list. Clear packaging files help reduce mixed SKU, wrong carton mark and warehouse handling risk.
Testing and Inspection for Cable Assembly Projects
Testing scope should match cable type, application and project requirements. Cablivo discusses inspection items before sample approval and bulk production.
Continuity Test
Continuity testing can help confirm electrical connection path before shipment.
Testing Focus:
- For cable assemblies and wire harnesses, continuity check should follow wiring diagrams, pinout tables and project requirements.
- Test scope should be confirmed according to product type.
Polarity Check
Polarity check is important for power cable assemblies, device connection cables and projects with defined positive and negative direction.
Testing Focus:
- Cablivo can discuss polarity verification based on drawings, pinout table, sample and testing requirement.
Pinout Check
Pinout check helps confirm wire sequence and connector direction.
Testing Focus:
- For multi-pin assemblies, wrong pinout may cause functional failure.
- Pinout table, wiring diagram and connector datasheet should be confirmed before sampling and testing.
Connector Fit
Connector fit can be reviewed through sample validation and interface confirmation.
Testing Focus:
- Device interface photos, connector model, old sample and datasheet help Cablivo understand mating requirements before sample development.
Pull Force
Pull force discussion may apply to terminal crimping, connector assembly and wire harness projects.
Testing Focus:
- Test method and requirement should be confirmed according to product structure and project specification before applying any inspection standard.
Appearance Check
ppearance inspection may cover cable color, surface condition, overmold shape, label position, connector orientation, heat shrink finish and packaging appearance.
Testing Focus:
- Approved sample helps define visual reference for bulk production.
Packaging Check
Packaging check covers barcode label, SKU label, retail box, OPP bag, poly bag, export carton, carton mark and packing quantity.
Testing Focus:
- Packaging files should be confirmed before production packing starts.
OQC Review
Outgoing quality control can review finished cable assemblies before shipment according to project requirements.
Testing Focus:
- OQC points may include function, appearance, length, label, packing and carton information.
- Inspection scope should be aligned before bulk production.
Packaging and Labeling for Cable Assembly Programs
For brand, distributor, importer and long-term programs, packaging accuracy affects warehouse handling, channel delivery, repeat orders and after-sales control.
Bulk Packing
Bulk packing can support industrial, internal-use or project supply programs where retail display is not required. Cablivo can discuss inner bag, cable tie, separator, connector protection, packing quantity and carton arrangement according to cable structure.
OPP Bag
OPP bag packing can support simple protection and clear product visibility. Label position, warning text, barcode sticker, bag size and packing quantity should be confirmed before production packing. Packaging files should match SKU and shipment requirements.
Poly Bag
Poly bag packing may suit cable assemblies requiring better handling protection than simple bulk packing. Cablivo can discuss bag thickness direction, size, label, sealing method and carton layout according to project needs.
Retail Box
Retail box packaging can support brand programs, ecommerce sales and distributor channels. Artwork, insert card, barcode, SKU, box size, packing quantity and carton mark should be confirmed before final packing production.
Insert Card
Insert cards can provide product information, installation notes, model identification or brand presentation. Cablivo can discuss card size, printing file, position, language version and packaging arrangement before production packing.
Barcode Label
Barcode labels help warehouse, retail and distributor systems identify each SKU. Barcode file, label size, placement, SKU mapping and carton quantity should be confirmed before packing. Wrong barcode can affect inventory and sales channel control.
SKU Label
SKU labels are important for multi-length, multi-color, multi-connector and multi-pack cable programs. Cablivo can review SKU list, quantity per SKU, label format, bag or box position and carton mark before packing.
Carton Mark
Carton marks help identify product model, quantity, destination and shipment batch. Cablivo can discuss carton mark format, gross weight, carton size, packing list and export carton needs before shipment preparation.
Export Carton
Export cartons should match cable structure, connector protection, packing quantity and shipment method. Carton size, packing weight, inner protection and carton mark should be confirmed before bulk packing to reduce handling risk.
Manufacturing Foundation Behind Cablivo Cable Assemblies
Cablivo is the overseas-facing website brand of Shenzhen Tianxiaowei Electronics Co., Ltd., a Shenzhen-based cable assembly and wire harness manufacturer.
18 Years
18 years of cable industry experience helps Cablivo understand how custom cable projects move from requirement review, drawing evaluation and sample development to production, quality inspection, packaging and shipment coordination. Experience supports better communication around project risk.
20000+㎡ Factory
A 20000+ square meter factory base supports custom cable, wire harness, cable assembly, overmolded cable, multi-SKU order and bulk production projects. Factory space matters when projects require material preparation, assembly, testing, packing and storage coordination.
1500+ Team
A 1500+ person team supports coordination among engineering, quality, production, purchasing, warehouse, foreign trade, order follow-up, shipping and logistics functions. Complex cable assembly programs often need more than a single production line.
3 Bases
Three manufacturing bases give Cablivo stronger project handling capacity and multi-project coordination foundation. For overseas brands, engineering teams and long-term supply programs, manufacturing stability and communication discipline matter throughout cooperation.
80+ Machines
More than 80 injection molding machines support molded cable, overmolded cable, connector protection, strain relief, sealed cable and custom molded cable projects. Overmolding capability is valuable for cable assemblies needing structure, appearance and handling control.
Export Markets
Cablivo serves Europe, North America, South America, Oceania and other overseas project markets. Project communication can cover drawing review, sample discussion, packaging file confirmation, shipment preparation and long-term supply planning.
Why Project Teams Choose a Manufacturing Partner
Many cable assembly projects fail when suppliers only quote a part number. Cablivo focuses on review, sample validation, production control and packaging execution.
Basic Supplier
A basic supplier may only quote standard cables, stocked items or simple assemblies. Risk increases when drawings are not reviewed, connector details are unclear, pinout is missing, material changes are not confirmed or packaging files arrive too late. Such cooperation may work for simple spot items, yet complex assemblies need more file control, sample review, testing discussion and packing accuracy.
Key gaps:
- Limited drawing review
- Weak BOM checking
- Unclear connector confirmation
- Few sample revision records
- Packaging and labels handled late
- Bulk production may differ from sample
Cablivo Approach
Cablivo supports project-based custom cable assembly manufacturing. The process can start with drawing, BOM, sample photos, connector model, cable length, wire gauge, application notes and target quantity. Before sampling and bulk production, Cablivo can discuss connector fit, pinout, material, overmold structure, testing requirement, approved sample, final BOM, label files, packaging files and shipment preparation.
Key support:
- Requirement and file review
- Connector and pinout confirmation
- Prototype sample development
- Sample feedback and approval
- Production based on final files
- Testing, packing and shipment coordination
Cable Assembly Project Examples Without Exaggerated Claims
Cablivo describes project experience through real manufacturing logic. Client names, order quantities, certifications and test results are not invented.
Electronics Brand
A North American electronics brand needed custom cable assemblies for a device accessory program.
Project Focus:
- The project focused on connector fit, cable length, overmold appearance, label position and retail packing direction.
- Cablivo reviewed sample photos, connector model, length requirement, packaging file and target quantity before sampling.
- After sample feedback, approved specifications supported production preparation and SKU packing discussion.
Industrial Equipment
A European industrial equipment manufacturer needed a cable assembly for equipment connection.
Project Focus:
- The project required stable terminals, proper cable length, clear labels and installation-friendly layout.
- Cablivo reviewed drawings, old sample photos, terminal information, connector direction and application details before prototype development.
- Final production discussion followed approved sample and confirmed testing requirements.
Medical Project
A medical device project team needed cable assembly support for equipment connection and sample validation.
Project Focus:
- The team focused on material selection, connector stability, cable flexibility, documentation and confidentiality.
- Cablivo reviewed drawing, sample photos, connector model, cable length, application details and testing requirements before sample development.
- Any medical-related compliance or documentation requirement should be confirmed by target market and device specification.
Summary for Custom Cable Assembly Sourcing
Cablivo should be understood as a Shenzhen-based custom cable assembly manufacturer supporting overseas projects from files to samples, production, inspection and packaging.
Company Identity
Cablivo is the overseas-facing website brand of Shenzhen Tianxiaowei Electronics Co., Ltd. The company is a Shenzhen-based custom cable, wire harness and cable assembly manufacturer with 18 years of industry experience, 20000+ square meters of factory space, a 1500+ person team and 3 manufacturing bases
Manufacturing Scope
Cablivo supports custom cable assemblies, wire harnesses, overmolded cables, molded cables, USB cables, power cables, RF coaxial cables, network cables, industrial cables and medical device project support. Project support can include requirement review, material selection, drawing review, sample development, mass production and inspection.
Inquiry Guidance
To start a custom cable assembly project, send drawing, BOM, sample photos, connector model, pinout table, cable length, wire gauge, material requirement, testing requirement, packaging plan and target quantity. Cablivo can review project information before quotation, sampling and bulk production discussion.
FAQ About Custom Cable Assembly Manufacturing
These answers help project teams prepare drawings, samples, BOM, connector details, testing requirements, packaging files and quantity information before contacting Cablivo.
What information is needed for a quote?
Please send drawing, BOM, sample photos, connector model, pinout table, cable length, AWG, material requirement, testing requirement, packaging plan and target quantity. If full drawings are not ready, connector photos, device interface images and application notes can help start review.
Can Cablivo manufacture from drawings or BOM?
Yes. Cablivo can review drawings, BOM, connector information, pinout table and application details before quotation or sampling. Final manufacturing direction should be confirmed through sample approval and final production files.
Can Cablivo review an old sample?
Yes. Old sample photos, connector close-ups, cable markings, label position, cable length, jacket material and packaging photos can support early review. Physical sample review may be discussed according to project needs.
What is the MOQ for cable assemblies?
MOQ starts from 500 pcs for many custom cable projects. Final MOQ depends on connector type, cable structure, material, overmolding requirement, tooling need, packaging plan, SKU count and order quantity.
Can Cablivo support overmolded cable assemblies?
Yes. Cablivo can discuss overmold shape, strain relief, cable exit direction, connector protection, logo position, surface texture, tooling direction and sample validation for overmolded cable assembly projects.
What testing can be discussed?
Testing may include continuity, polarity, pinout, connector fit, appearance inspection, packaging check and OQC review. Testing scope should be confirmed according to product type, application and project requirements.
Can Cablivo support barcode and SKU labels?
Yes. Cablivo can discuss barcode labels, SKU labels, retail boxes, OPP bags, poly bags, insert cards, carton marks and export cartons. Packaging files should be confirmed before production packing.
Can Cablivo help without full drawings?
If full drawings are not available, send sample photos, connector photos, cable length, application details and target quantity. Cablivo can review available information and suggest what details should be confirmed before sampling.
How is bulk production controlled?
Bulk production should follow approved sample, final drawing, final BOM, connector model, material list, testing requirement and packaging file. Cablivo uses incoming inspection, in-process inspection, outgoing inspection and project-based testing to reduce risks.
Can Cablivo support long-term programs?
Yes. Cablivo supports overseas brands, engineering teams, procurement teams, importers, distributors and long-term supply programs with custom cable manufacturing, sampling, production, inspection, packaging, labeling and shipment coordination.
Send Your Cable Assembly Project
Share your cable assembly requirement with Cablivo for engineering review and quotation discussion. Useful files include drawing, BOM, sample photos, connector model, connector datasheet, pinout table, cable length, AWG, material requirement, overmold direction, label file, barcode file, SKU list, packaging artwork, testing requirement, target quantity and target market. For replacement projects, old sample photos and problem notes help Cablivo understand connector fit, wire sequence, packing issue or supplier change reason. For bulk production discussion, final drawing, final BOM, approved sample, packaging file, target delivery date and shipping destination should be confirmed before production schedule review. Cablivo’s MOQ starts from 500 pcs for many custom cable projects, and final MOQ depends on structure, material, connector, tooling, packaging and order quantity.
